Excavators, Loaders & More
At Huntlys Heavy Equipment in Rockhampton, we sell a wide range of modern machinery, including excavators, wheel loaders and trackers. Our professional staff will help you find the most suitable machine for your line of work, whether that’s agricultural, construction or earthmoving. Give us a call to speak to our team today!
Lovol Excavators

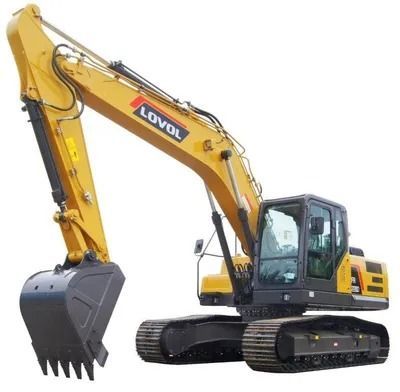

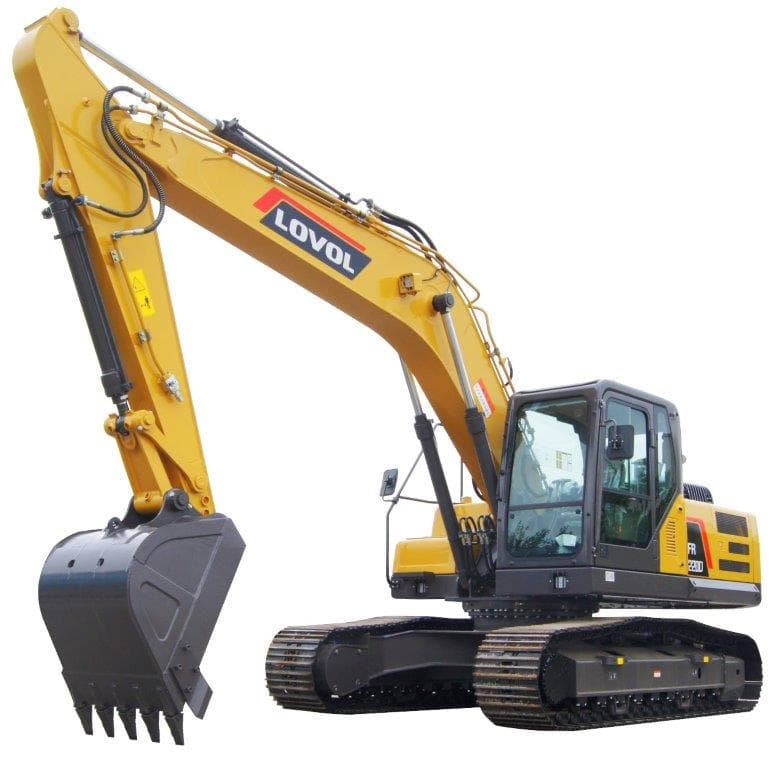

Lovol FR220D 22T Excavator
Featuring an Isuzu engine with a mechanical inline fuel pump, the 22-tonne Lovol FR220D 22T Excavator is a powerful machine, perfect for a variety of jobs. It uses a KPM hydraulic system with pilot operated joysticks. This excavator is an industry leader based on performance, reliability and quality.
Measurements
Operational Weight: 22,500kg (22.5 Tonne)
Dimensions: 2,980mm wide/3,054mm high/9,580mm long
Track Plate Width: 600mm
Fuel Tank Capacity: 385L
Travel Speed: 5.3km/h (high) 3.5km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Isuzu AA6BG1TRP-04
Power: 114kW/153HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 10,200mm
Depth (Maximum): 6,800mm
Radius (Maximum): 9,900mm
Bucket
Standard: GP with teeth (options available)
Capacity: 1m3
Digging Force: 143kN
Dipper Arm Force: 116kN
Hydraulics
System: KPM pilot control system (no electrics)
Flow Rate: 468L/ per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: Rexroth
Swing Speed: 12 RPM

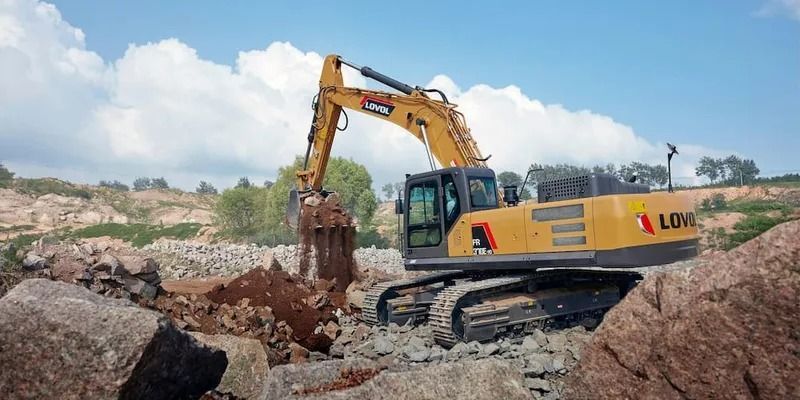

Lovol FR370E-HD 40T Excavator
The Lovol FR370E-HD 40T Excavator was designed with performance and durability in mind. It features an Isuzu engine with a high-pressure rail system with no AdBlue/DPF/EGR, making this machine highly reliable. It includes a KPM hydraulic system with pilot operated joysticks and a cab interior common with most well-known brands. This excavator is perfect for the toughest types of heavy-duty projects.
Measurements
Operational Weight: 40,000kg (40 Tonne)
Dimensions: 3,300mm wide/3,500mm high/11,370mm long
Track Plate Width: 700mm triple pate
Fuel Tank Capacity: 630L
Travel Speed: 5km/h (high) 2.7km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Isuzu 6HK1XKSC-02
Power: 212kW/285HP
Spec: Common Rail. Tier 3. No AdBlue/DPF/EGR
Digging
Height (Maximum): 10,300mm
Depth (Maximum): 6,900mm
Radius (Maximum): 10,700mm
Bucket
Standard: GP with teeth (options available)
Capacity: 2m3
Digging Force: 244kN
Dipper Arm Force: 209kN
Hydraulics
System: KPM pilot control system
Flow Rate: 640L/per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: KPM
Swing Speed: 7 RPM

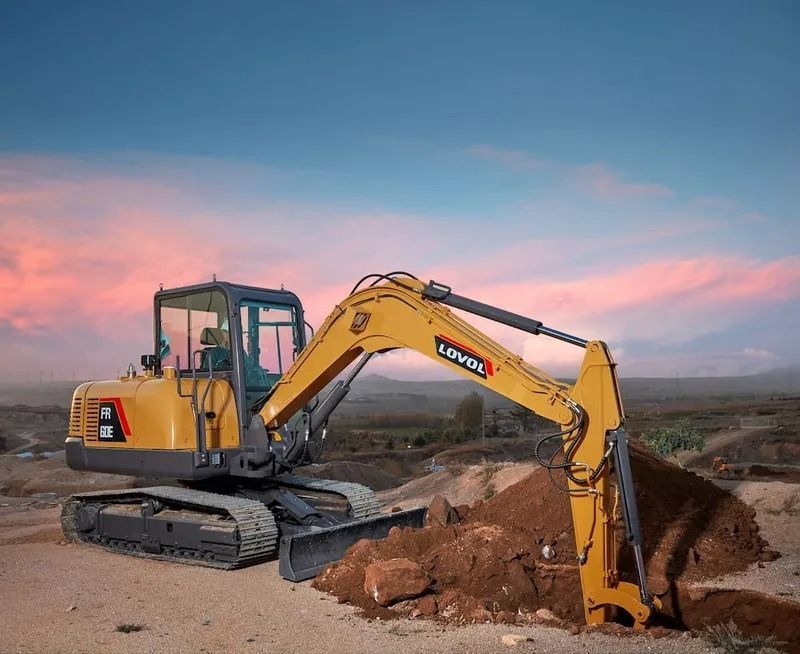

Lovol FR60E 6T Excavator
The Lovol FR60E 6T Excavator operates off the reliable Yanmar engine with no engine ECU. It uses the renowned KYB hydraulic system and boasts precise control thanks to its pilot operating joysticks and no electrics. This excavator includes A/C and a modern interior design.
Measurements
Operational Weight: 6,000kg (6 Tonne)
Dimensions: 1,950mm wide/2,660mm high/6,090 long
Track Plate Width: 400mm
Fuel Tank Capacity: 120L
Travel Speed: 4.2km/h (high) 2.4km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Yammar 4TNV94L
Power: 36kW/48HP
Spec: No Engine ECU. Tier 3
Digging
Height (Maximum): 5,405mm
Depth (Maximum): 3,660mm
Radius (Maximum): 2,660mm
Bucket
Standard: GP with teeth (option available)
Capacity: 0.2m3
Digging Force: 42kN
Dipper Arm Force: 31kN
Hydraulics
System: KYB pilot control system (no electrics)
Flow Rate: 144L/ per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: Eaton (USA)
Swing Speed: 11 RPM

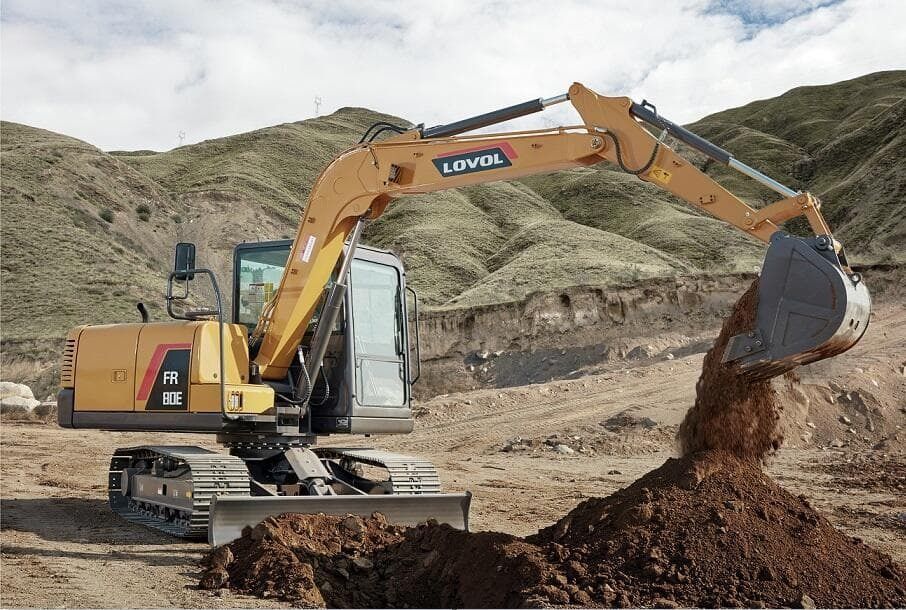

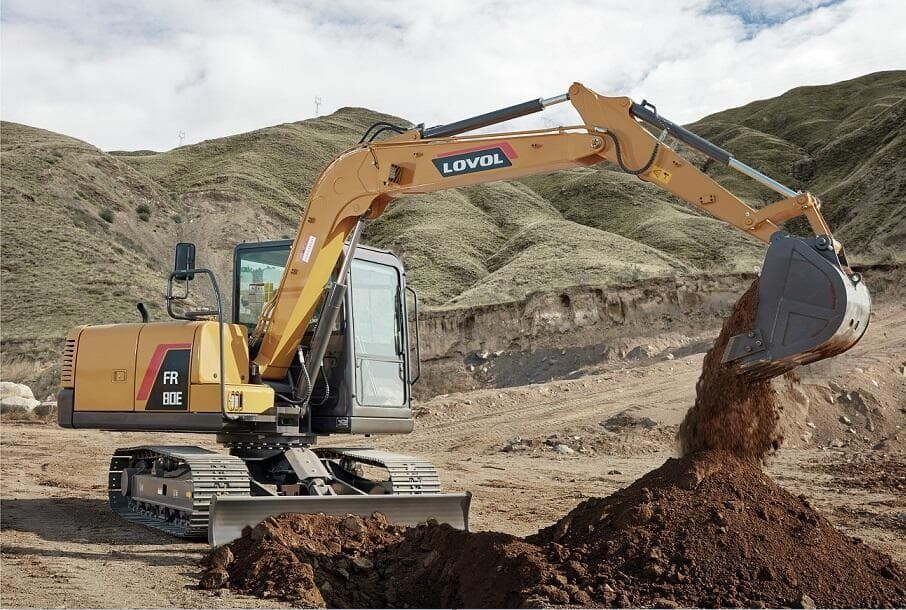

Lovol FR80E 8T Excavator
This modern excavator features a reliable Yanmar engine with no engine ECU. It is designed with increased stability and performance, making it stand out from its competition. It includes the famous KYB hydraulic system with pilot operated joysticks, making it a smart choice for all types of heavy-duty work.
Measurements
Operational Weight: 8,000kg (8 Tonne)
Dimensions: 2,275mm wide/2,650mm high/6,100mm long
Track Plate Width: 450mm
Fuel Tank Capacity: 160L
Travel Speed: 4.3km/h (high) 2.7km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Yanmar 4TNV98
Power: 44kW/60HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 7,150mm
Depth (Maximum): 4,050mm
Radius (Maximum): 6,335mm
Bucket
Standard: GP with teeth (options available)
Capacity: 0.3m3
Digging Force: 56kN
Dipper Arm Force: 38kN
Hydraulics
System: KYB pilot control system (no electrics)
Flow Rate: 160L/ per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: Eaton (USA)
Swing Speed: 11 RPM

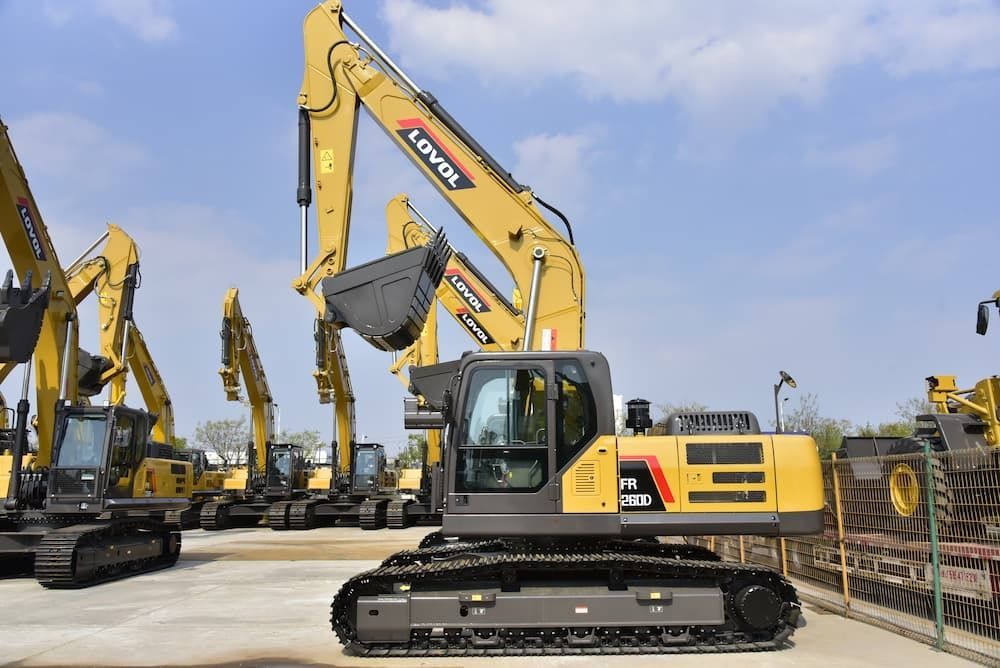

Lovol FR260D 26T Excavator
The Lovol FR260D 26T Excavator is a powerful excavator capable of tackling a wide range of construction and earthmoving jobs. It operates off an Isuzu engine and a KPM hydraulic system with pilot operated joysticks. The interior is lined and sealed for climate control, including A/C and a heater. This excavator boasts the best of both worlds, combining comfort with performance.
Measurements
Operational Weight: 26,000kg (26 Tonne)
Dimensions: 3,180mm wide/3,060mm high/9,890mm long
Track Plate Width: 600mm
Fuel Tank Capacity: 685L
Travel Speed: 5.3km/h (high) 3.5km/h
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Isuzu AA6BG1TRP-04
Power: 130kW/174HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 10,200mm
Depth (Maximum): 6,800mm
Radius (Maximum): 10,200mm
Bucket
Standard: GP with teeth (options available)
Capacity: 1.2m3
Digging Force: 179kN
Dipper Arm Force: 147kN
Hydraulics
System: KPM pilot control system (no electrics)
Flow Rate: 546L/ per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: KPM
Swing Speed: 11 RPM

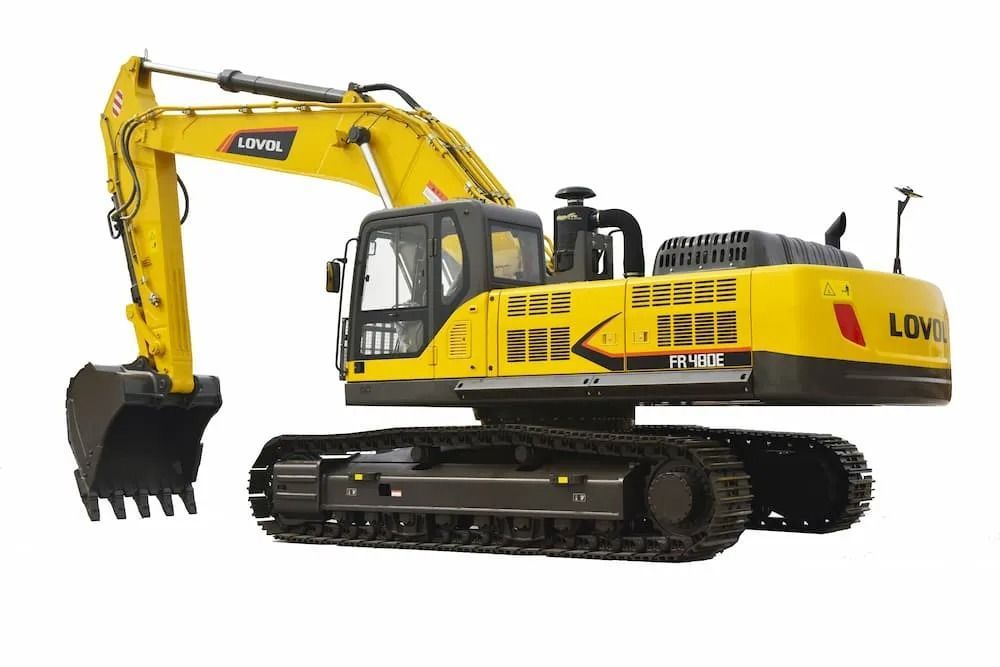

Lovol FR4803-HD 48T Excavator
Looking for an excavator that performs time and time again? Try the Lovol FR4803-HD 48T Excavator! It includes the reliable Cummins QSM 11 common rail engine with no AdBlue, no DPF and no EGR. It features the KPM hydraulic system with pilot operated joysticks and a comfortable cab interior with an A/C and heater.
Measurements
Operational Weight: 48,000kg (48 Tonne)
Dimensions: 3,450mm wide/3,900mm high/12,250mm long
Track Plate Width: 700mm
Fuel Tank Capacity: 670L
Travel Speed: 4.6km/h (high) 2.9km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Cummins QSM11
Power: 298kW/400HP
Spec: Common Rail. Tier 3. No AdBlue/DPF/EGR
Digging
Height (Maximum): 10,600mm
Depth (Maximum): 7,300mm
Radius (Maximum): 11,500mm
Bucket
Standard: GP with teeth (options available)
Capacity: 2.2m3
Digging Force: 290kN
Dipper Arm Force: 235kN
Hydraulics
System: KPM pilot control system
Flow Rate: 760L/ per minute
Quick Hitch:
Hammer Pipes: Factory installed
Swing motor: KPM
Swing Speed: 8 RPM

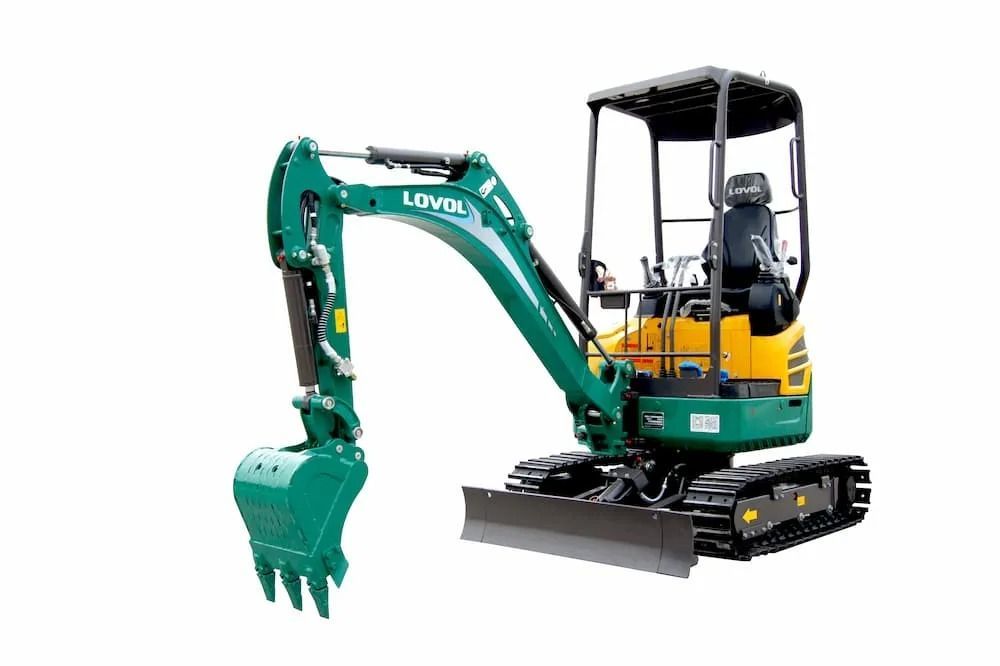

Lovol FR18E-U 1.8T Excavator
The Lovol FR18E-U 1.8T Excavator is built using components that are leading the industry. It’s designed to perform better for longer, featuring a zero-swing widening for stability, a Yanmar engine, pilot operated joysticks, opening lockable covers and shields, fuel filling point, hydraulic filling point and much more.
Measurements
Operational Weight: 1800KG (1.8 Tonne)
Dimensions: 990mm wide/2,347mm high/3,575mm long
Track Plate Width: 230mm
Fuel Tank Capacity: 20L
Travel Speed: 3.7km/h (high) 1.9km/h (slow)
Cab & Canopy
Platform: Roomy space and comfortable seat
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Yanmar
Power: 12kW/16HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 3,540mm
Depth (Maximum): 2,310mm
Radius (Maximum): 3,905mm
Bucket
Standard: GP with teeth (options available)
Capacity: 0.04m3
Digging Force: 15.2kN
Dipper Arm Force: 8.5kN
Hydraulics
System: Nabotesco (Japan) pilot control system (no electrics)
Flow Rate:
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: Eaton (USA)
Swing Speed: 9 RPM
Lovol FR10D 15T Excavator
The ROPs and FOPs safety certified Lovol FR10D 15T Excavator will make your construction or earthworks project a breeze. It features a powerful Isuzu engine with a mechanical inline fuel pump and no engine ECU. This excavator will save you both time and money thanks to its durability and cutting-edge performance capabilities.
Measurements
Operational Weight: 14,500kg (14.5 Tonne)
Dimensions: 2,500mm wide/2,800mm high/7,700mm long
Track Plate Width: 500mm
Fuel Tank Capacity: 246L
Travel Speed: 5.8km/h (high) 3.6km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Isuzu BB-4BG1TRP
Power: 73kW/90HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 8,610mm
Depth (Maximum): 5,435mm
Radius (Maximum): 8,300mm
Bucket
Standard: GP with teeth (options available)
Capacity: 0.6m3
Digging Force: 95kN
Dipper Arm Force: 63kN
Hydraulics
System: KYB pilot control system (no electrics)
Flow Rate: 265L/per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: Eaton (USA)
Swing Speed: 12 RPM

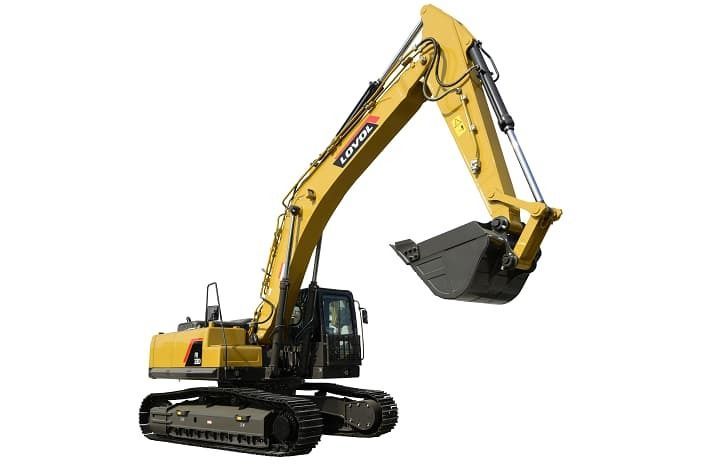

Lovol FR330D 33T Excavator
Looking for an excavator that combines comfort with performance? Well, try the Lovol FR330D 33T Excavator. It includes an Isuzu engine, mechanical fuel line pump, hydraulic pilot oil operated KPM system and a stylish and comfortable cab interior. This 33-tonne excavator will make even the toughest jobs a breeze.
Measurements
Operational Weight: 33,000kg (33 Tonne)
Dimensions: 3,300mm wide/3,290mm high/11,300mm long
Track Plate Width: 700mm
Fuel Tank Capacity: 630L
Travel Speed: 5.5km/h (high) 3.3km/h (low)
Cab & Canopy
Platform: Lined and sealed climate control A/C and heater
Safety: ROPs and FOPs certified
Joysticks: Pilot oil operated/thumb buttons
Engine
Type: Isuzu AA-6HK1XQP
Power: 191kW/256HP
Spec: No engine ECU. Tier 2
Digging
Height (Maximum): 10,100mm
Depth (Maximum): 7,300mm
Radius (Maximum): 10,900mm
Bucket
Standard: GP with teeth (options available)
Capacity: 1.8m3
Digging Force: 155kN
Dipper Arm Force: 205kN
Hydraulics
System: KPM pilot control system (no electrics)
Flow Rate: 640L/per minute
Quick Hitch: Factory installed
Hammer Pipes: Factory installed
Swing motor: KPM
Swing Speed: 9 RPM
Lovol Wheel Loaders

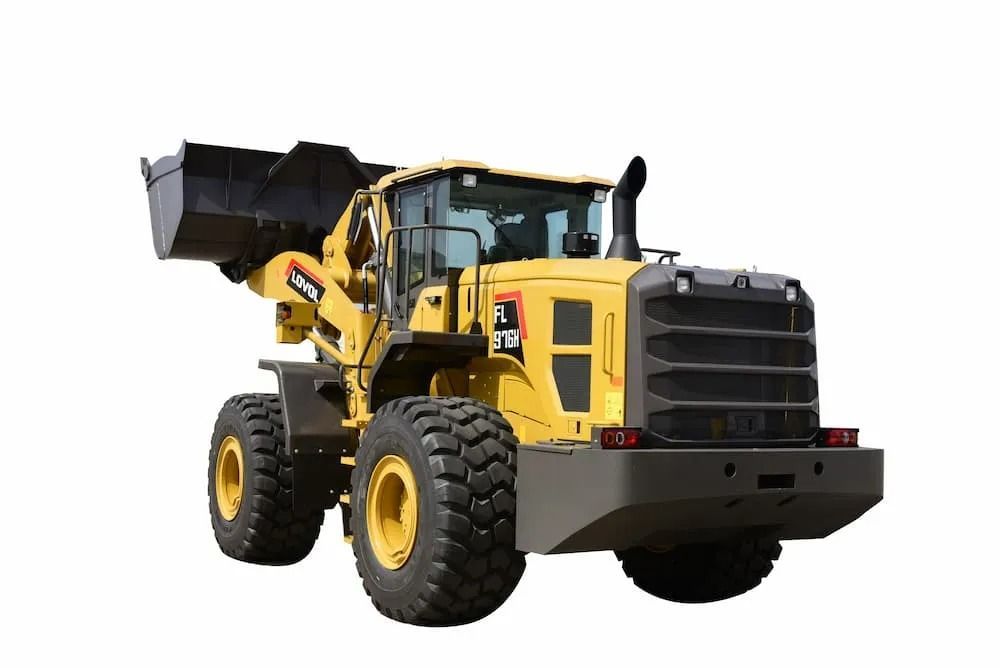

Lovol FL976K Wheel Loader
If you need a wheel loader with a 7-tonne safe workload capacity with the highly reliable Cummins QSL9.3 litre engine, check out the Lovol FL976K Wheel Loader. This beast uses the ZF 4BP230 powershift transmission with auto kick down, giving it superior performance capabilities. Featuring pilot oil operated joysticks, Meritor disc wet axles or Lovol 4-wheel disc brakes axles, this machine is built for the tough stuff.
Measurements
Operational Weight: 25,000kg (25 Tonne)
Rated Load: 7,000kg (7 Tonne)
Dimensions: 9,150mm long/3,200mm wide/3,380mm high
Tyre Size: 750/60R25 20 ply rating
Fuel Tank Capacity: 240L
Travel Speed: 38km/h
Brakes: Air over hydraulic 4 wheel disc (wet brake option available)
Cab & Canopy
Cab: Lined & sealed A/C & heater silenced
Safety: ROPs and FOPs certified
Seat: Air suspension with arm rests and seat belt
Steering: Danfoss orbital unit. Hydrostatic
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Cummins QSL9.3 Litre Common Rail
Power: 198kW/265HP
Spec: Tier 3
Fuel Pump: Common rail
Transmission: ZF 4BP230 power-shift 4F/3R with fast kick down
Bucket
Type: GP with bolt on cutting edge (options available)
Lifting Height: 4,720mm
Lifting Time: 5.7 sec
Capacity: 6m3
Hydraulics
Pressure: 22Mpa (3200psi)
3rd Function:
Quick Hitch: Factory installed

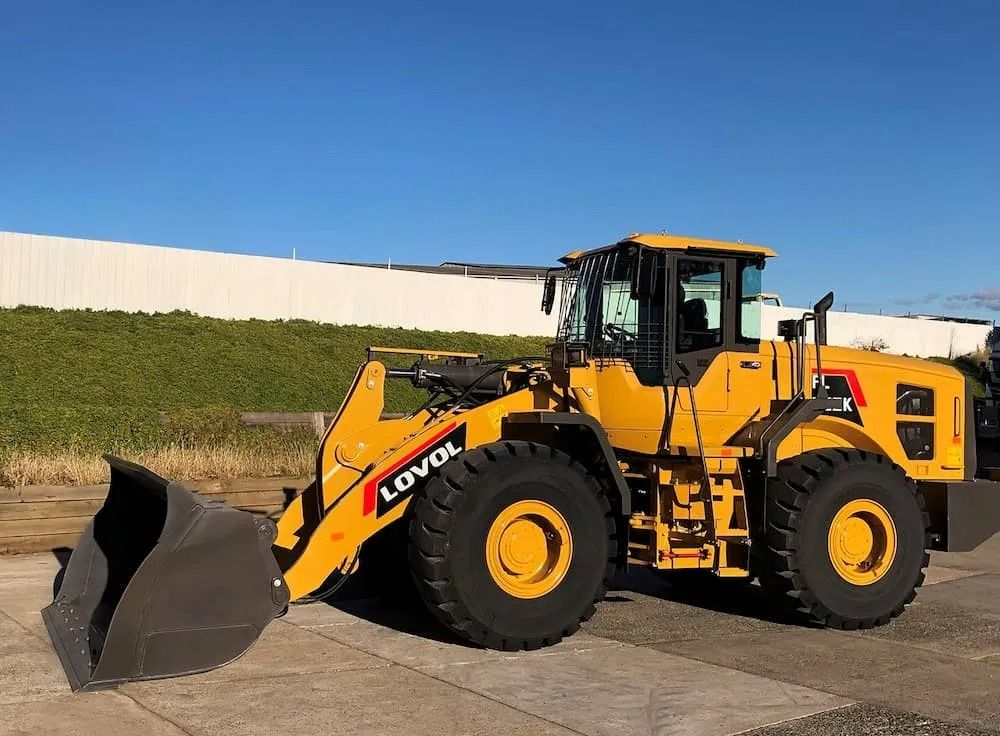

Lovol FL958K Wheel Loader
The Lovol FL958K Wheel Loader brings together luxurious comfort with outstanding performance. This wheel loader features the reliable Cummins QSB common rail engine and a fully automatic change powershift transmission. It’s renowned for its unrivalled extravagant interior, which is fully lined and sealed with A/C, armrests and a suspension seat.
Measurements
Operational Weight: 18,000kg (18 Tonne)
Rated Load: 5,500kg (5 Tonne)
Dimensions: 8,360mm long/2,745mm wide/3,380mm high
Tyre Size: 23.5-25 16 ply rating
Fuel Tank Capacity: 180L
Travel Speed: 40km/h
Brakes: Air over hydraulic 4 wheel disc/wet brake multi disc option
Cab & Canopy
Cab: Lined and sealed A/C and heater
Safety: ROPs and FOPs certified
Seat: Air suspension seat with arm rests and seat belt
Steering: Danfoss orbital unit. Hydrostatic
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Cummins QSB9.3L
Power: 180kW/240HP
Spec: Tier 3. No AdBlue, EGR, DPF
Fuel Pump: Common rail
Transmission: Powershift 2F/1R Full auto-shift
Bucket
Type: GP Quick hitch with bolt on cutting edge (options available)
Lifting Height: 4,200mm
Lifting Time: 5.7 sec
Capacity: 3.6m3
Hydraulics
Pressure: 20Mpa (3000psi)
3rd Function: Lever operated
Quick Hitch: Factory installed
Lovol FL938H Wheel Loader
Featuring a Deutz Weichai mechanical fuel pump engine and power shift transmission, the Lovol FL938H Wheel Loader is known for reliability and performance. This loader also features a comfortable interior with AM/FM audio, A/C and an air suspension seat with armrests. This model has a respected reputation for toughens.
Measurements
Operational Weight: 12,000kg (12 Tonne)
Rated Load: 3,500kg (3.5 Tonne)
Dimensions: 7,090mm long/2,820mm wide/3,550mm high
Tyre Size: 20.5-25 16 ply rating
Fuel Tank Capacity: 150L
Travel Speed: 40km/h
Brakes: Air over hydraulic 4 wheel disc
Cab & Canopy
Cab: Lined & sealed A/C & heater
Safety: ROPs and FOPs certified
Seat: Air suspension seat with arm rests and seat belt
Steering: Hydrostatic. Rexroth orbital unit
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Deutz Weichai 6 cylinder
Power: 115kW/154HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: Electronic power-shift (F3/R2)
Bucket
Type: GP (general pupose) with bolt on cutting edge (options available)
Lifting Height: 4,040mm
Lifting Time: 5.3 sec
Capacity: 1.8m3
Hydraulics
Pressure: 18Mpa (2600psi)
3rd Function: Lever operated
Quick Hitch: Factory installed

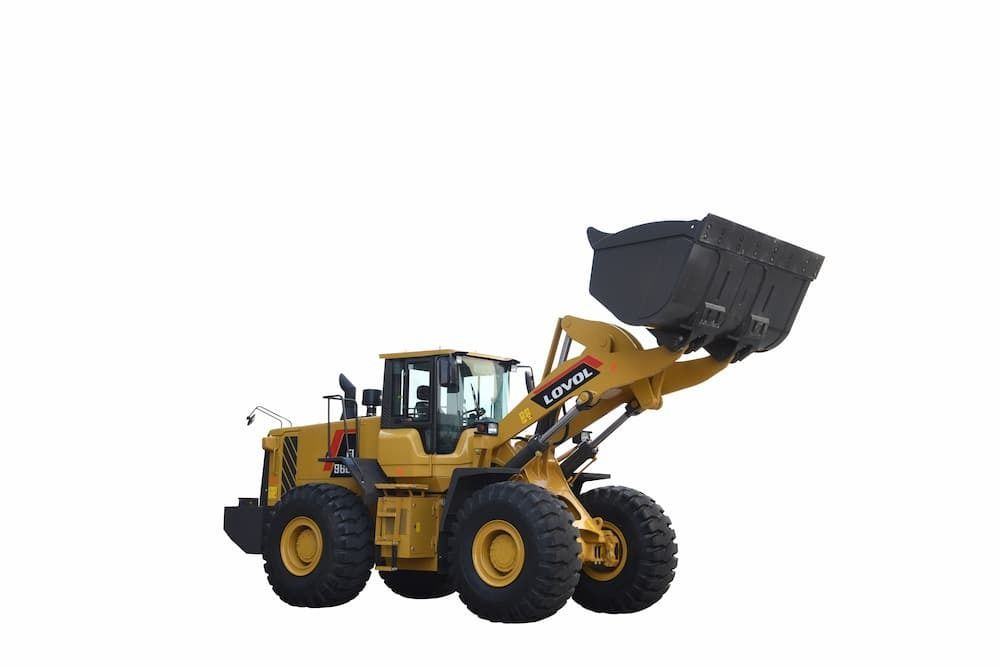

Lovol FL966H Wheel Loader
The Lovol FL962K Wheel Loader has limited electronic components, which eliminates many problematic items. It features a Deutz Weichai 6-cylinder engine, a 6-tonne safe workload capacity powershift transmission and much more. This loader is perfect for any heavy-duty task.
Measurements
Operational Weight: 22,000kg (22 Tonne)
Rated Load: 6,000kg (6 Tonne)
Dimensions: 8,540mm long/2,925mm wide/3,400mm high
Tyre Size: 23.5-25 16 ply rating
Fuel Tank Capacity: 180L
Travel Speed: 38km/h
Brakes: Air over hydraulic 4 wheel disc (wet brake option available)
Cab & Canopy
Cab: Lined & sealed A/C & heater silenced
Safety: ROPs and FOPs certified
Seat: Air suspension with arm rests and seat belt
Steering: Danfoss orbital unit. Hydrostatic
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Deutz Weichai 6 cylinder
Power: 192kW/257HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: ZF 4BP200 power-shift 4F/3R with fast kick down
Bucket
Type: GP with bolt on cutting edge (options available)
Lifting Height: 4,390mm
Lifting Time: 5.7 sec
Capacity: 4.5m3
Hydraulics
Pressure: 20Mpa (3000psi)
3rd Function:
Quick Hitch: Factory installed

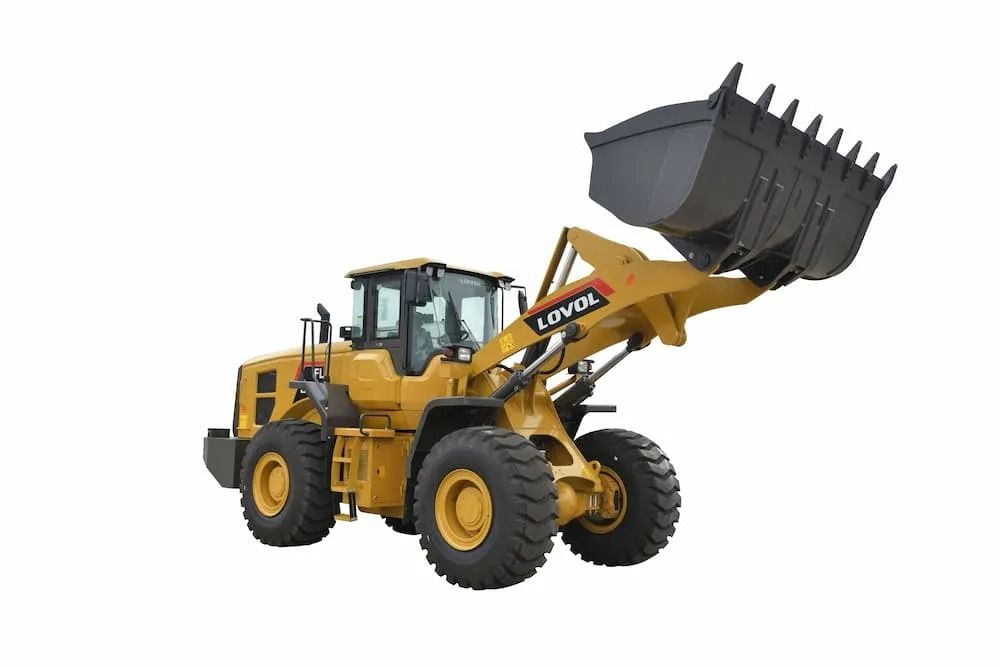

Lovol FL962K Wheel Loader
With a Cummins QSB9.3 litre engine, Danfoss hydrostatic driveline, pilot operated joystick and much more, the Lovol FL962K Wheel Loader boasts impressive capabilities. Thanks to its modern design, it changes direction smoother than other models, has less wheel slippage, increased fuel savings and superior operator comfort.
Measurements
Operational Weight: 20,000kg (20 Tonne)
Rated Load: 6,000kg (6 Tonne)
Dimensions: 8,870mm long/3,300mm wide/3,620mm high
Tyre Size: 23.5R25 L5 tubeless radial
Fuel Tank Capacity: 180L
Travel Speed: 44km/h
Brakes: ZF oil immersed multi disc / ZF wet brake axles
Cab & Canopy
Cab: Lined & sealed A/C & heater silenced
Safety: ROPs and FOPs certified
Seat: Air suspension with arm rests and seat belt
Steering: Danfoss orbital unit. Hydrostatic
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Cummins QSB7
Power: 160kW/228HP
Spec: Tier 3
Fuel Pump: Common rail
Transmission: Danfoss Hydrostatic with joystick thumb action F/R shift
Bucket
Type: GP Quick hitch with bolt on cutting edge (options available)
Lifting Height: 5,300mm
Lifting Time: 5.7 sec
Capacity: 4m3
Hydraulics
Pressure: 20Mpa (3000psi) Danfoss pump
3rd Function: Lever operated
Quick Hitch: Factory installed

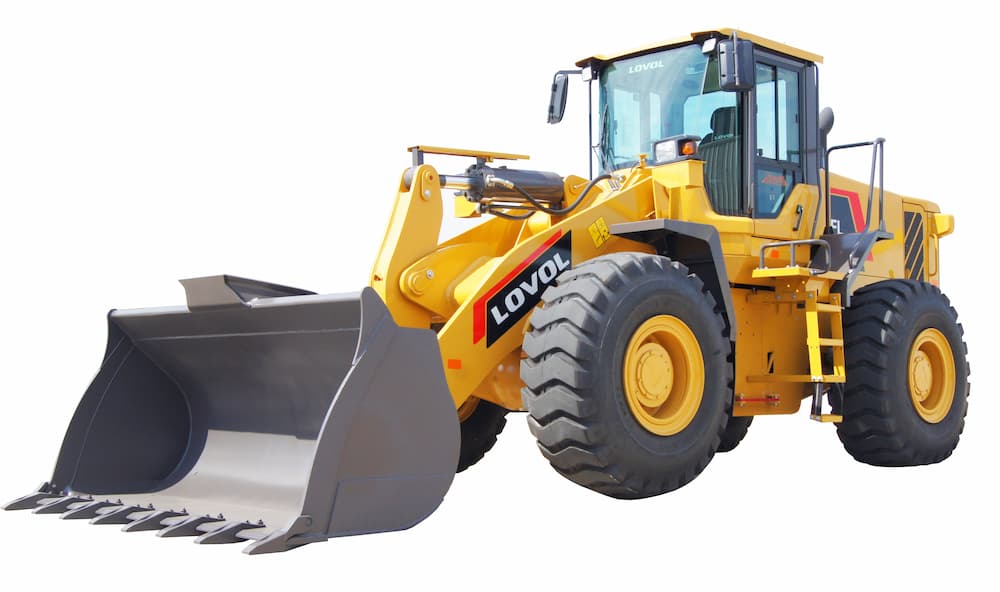

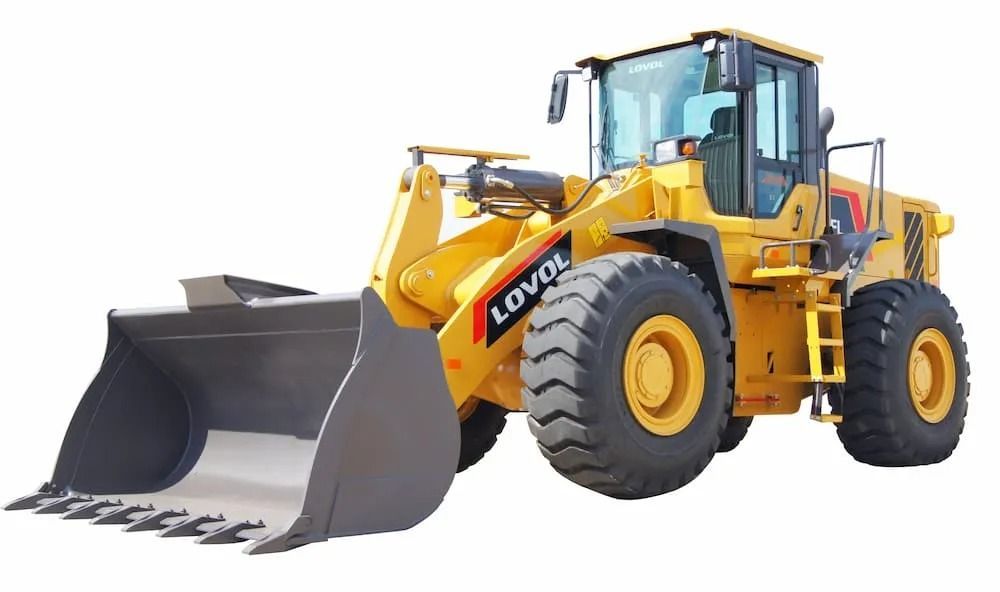

Lovol FL958H Wheel Loader
Enjoy a machine that operates seamlessly with the Lovol FL958H Wheel Loader. Because it has limited electronic components, it’s less likely to experience issues or breakdowns. It runs off a Deutz Weichai mechanical fuel pump engine with a 5-tonne safe workload capacity.
Measurement
Operational Weight: 18,000kg (18 Tonne)
Rated Load: 5,500kg (5 Tonne)
Dimensions: 8,360mm long/2,745mm wide/3,380mm high
Tyre Size: 23.5-25 16 ply rating
Fuel Tank Capacity: 180L
Travel Speed: 38km/h
Brakes: Air over hydraulic 4 wheel disc
Cab & Canopy
Cab: Lined & sealed A/C & heater
Safety: ROPs and FOPs certified
Seat: Air suspension seat with arm rests and seat belt
Steering: Air suspension seat with arm rests and seat belt
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Deutz Weichai 6 cylinder
Power: 178kW/238HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: ZF 4BP200 power-shift 4F/3R with fast kick down
Bucket
Type: GP (general purpose) with bolt on cutting edge (options available)
Lifting Height: 4,200mm
Lifting Time: 5.7 sec
Capacity: 3.5m3
Hydraulics
Pressure: 18Mpa (3000psi) Danfoss Pump.
3rd Function: Lever operated
Quick Hitch: Factory installed

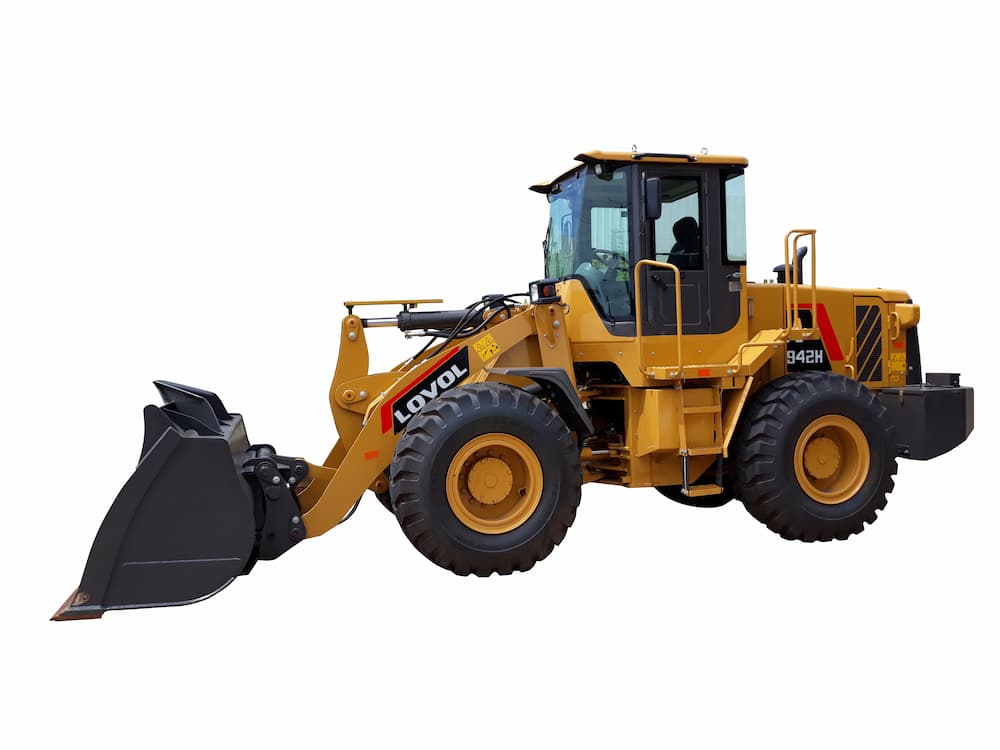

Lovol FL942H Wheel Loader
For a wheel loader that won’t let you know, try the Lovol FL942H Wheel Loader. It includes a range of modern features including a Deutz Weichai mechanical fuel pump engine, 4-tonne safe workload capacity, 4-wheel disc brakes and a luxurious lined and sealed interior. This loader will save you both time and money thanks to its durability and reliability.
Measurements
Operational Weight: 13,000kg (13 Tonne)
Rated Load: 4,000kg (4 Tonne)
Dimensions: 7,090mm long/2,820mm wide/3,550mm high
Tyre Size: 20.5-25 16 ply rating
Fuel Tank Capacity: 150L
Travel Speed: 40km/h
Brakes: Air over hydraulic 4 wheel disc
Cab & Canopy
Cab: Lined & sealed A/C & heater
Safety: ROPs and FOPs certified
Seat: Air suspension seat with arm rests and seat belt
Steering: Hydrostatic. Rexroth orbital unit
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Deutz Weichai 6 cylinder
Power: 115kW/154HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: Electronic power-shift (F3/R2)
Bucket
Type: GP (general purpose) with bolt on cutting edge (options available)
Lifting Height: 4,040mm
Lifting Time: 5.3 sec
Capacity: 3m3
Hydraulics
Pressure: 18Mpa (2600psi)
3rd Function: Lever operated. No electrics
Quick Hitch: Factory installed

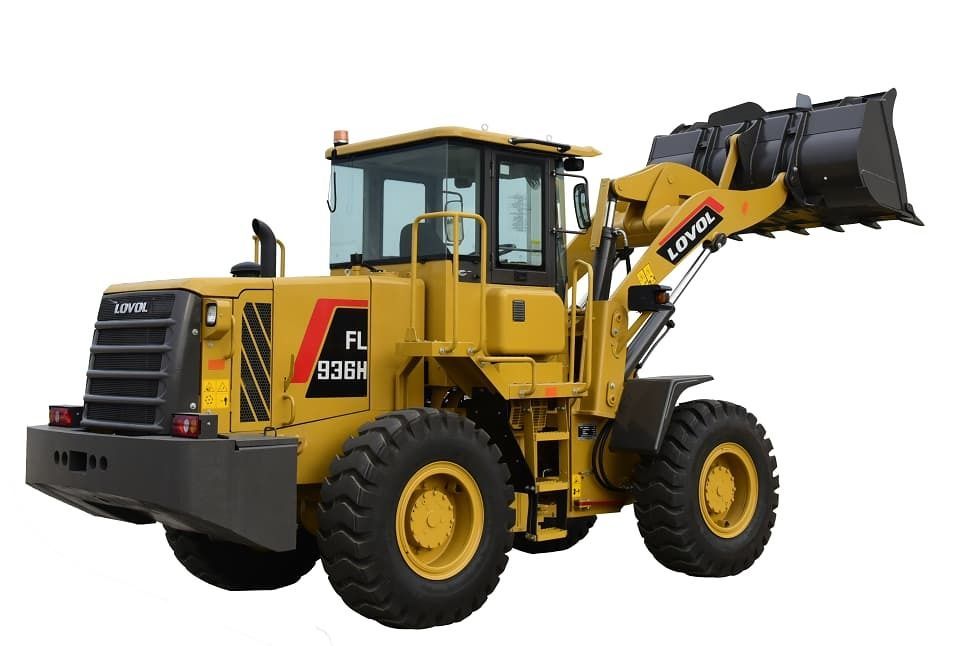

Lovol FL936H Wheel Loader
The Lovol FL936H Wheel Loader eliminates the risk of electrical issues while still featuring impressive performance capabilities. This machine operates off a Deutz Weichai engine and uses a lever-operated power shift transmission. With a luxurious interior and toughness that will match any brand of machine, it’s hard to beat this wheel loader.
Measurements
Operational Weight: 12,000kg (12 Tonne)
Rated Load: 3,500kg (3.5 Tonne)
Dimensions: 7,090mm long/2,820mm wide/3,550mm high
Tyre Size: 20.5-25 16 ply rating
Fuel Tank Capacity: 150L
Travel Speed: 40km/h
Brakes: Air over hydraulic 4 wheel disc
Cab & Canopy
Cab: Lined & sealed A/C & heater
Safety: ROPs and FOPs certified
Seat: Air suspension seat with arm rests and seat belt
Steering: Hydrostatic. Rexroth orbital unit
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Deutz Weichai 6 cylinder
Power: 115kW/154HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: Electronic power-shift
Bucket
Type: GP (general purpose) with bolt on cutting edge (options available)
Lifting Height: 4,040mm
Lifting Time: 5.3 sec
Capacity: 1.8m3
Hydraulics
Pressure: 18Mpa (2600psi)
3rd Function: Lever operated
Quick Hitch: Factory installed

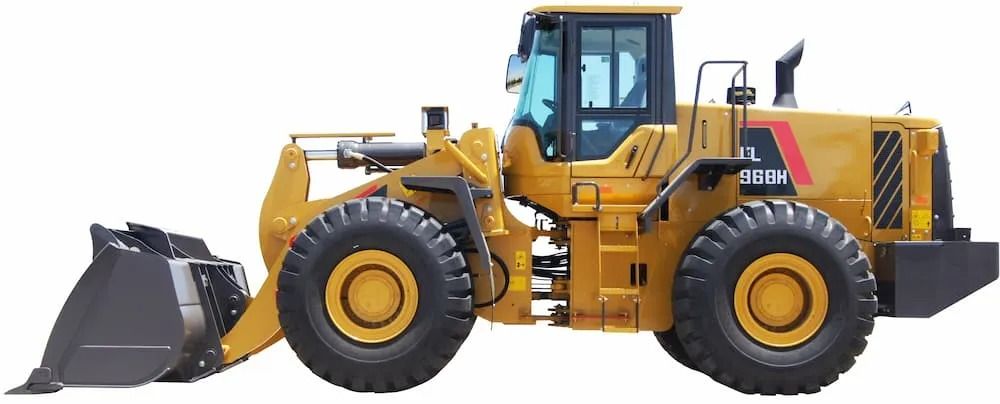

Lovol FL968H Wheel Loader
With a Cummins QSL9.3 litre engine and a ZF 4BP230 powershift transmission with kick down, the Lovol FL968H Wheel Loader is an industry leader. This wheel loader features pilot operated joysticks, A/C, an audio system, 4-wheel disc brakes and much more.
Measurements
Operational Weight: 23,000kg (23 Tonne)
Rated Load: 6,500kg (6.5 Tonne)
Dimensions: 8,760mm long/3,050mm wide/3,460mm high
Tyre Size: 26.5-25 16 ply rating
Fuel Tank Capacity: 240L
Travel Speed: 38km/h
Brakes: Air over hydraulic 4 wheel disc (wet brake option available)
Cab & Canopy
Cab: Lined & sealed A/C & heater silenced
Safety: ROPs and FOPs certified
Seat: Air suspension with arm rests and seat belt
Steering: Danfoss orbital unit. Hydrostatic
Joysticks: Pilot oil operated with float position
Rear Window: Wiper and demister
Windscreen: Protection grill
Rear View Camera: 7" screen
Engine
Brand: Cummins QSL9.3 Litre Common Rail
Power: 192kW/257HP
Spec: No engine ECU. Tier 2
Fuel Pump: Mechanical inline
Transmission: ZF 4BP230 power-shift 4F/3R with fast kick down
Bucket
Type: GP with bolt on cutting edge (options available)
Lifting Height: 4,390mm
Lifting Time: 5.7 sec
Capacity: 5m3
Hydraulics
Pressure: 20Mpa (3000psi)
3rd Function:
Quick Hitch: Factory installed
Solis Tractors

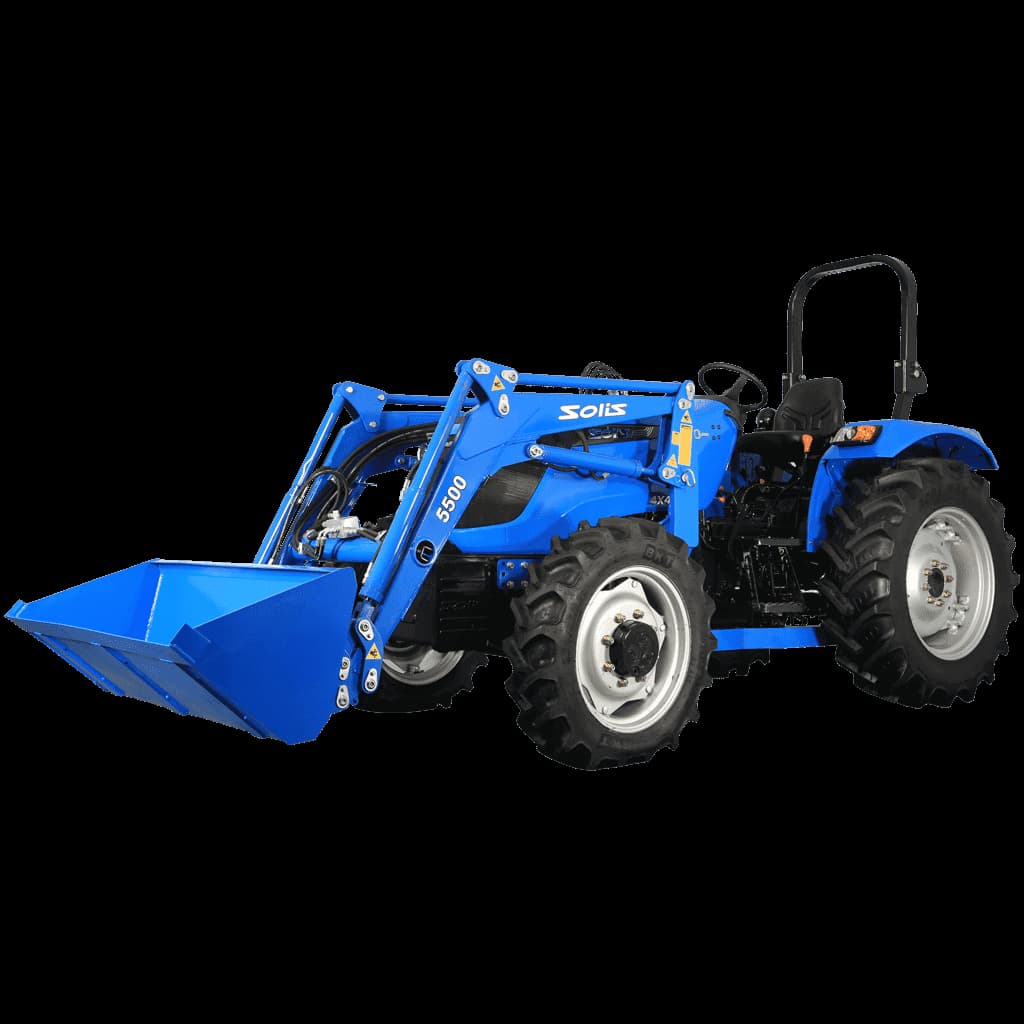

Solis S50 Tractor
The Solis S50 Tractor is small enough to handle tasks that require manoeuvrability, yet tough enough to handle those larger jobs. Featuring a full synchromesh transmission and forward/reverse shuttle, this tractor is the ideal machine for the hobby farmer. You’ll enjoy high performance, durability and ease of operation. It includes a 3-point linkage, rear PTO, rear hydraulic remote outlets and more.
Measurements
Ground Clearance: 293mm
Operating Weight: 3200kg dry (no loader or weights)
Total Width: 1840mm
Total Length: 3925mm
Turning Radius: 4.7 metres
Fuel Tank Capacity: 71L
Speeds
Max Speed: 33km/h
Min Speed: 2.3km/h
PTO (Mid and Rear): 540/540E RPM - wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: 2430mm
Sunroof Canopy: Yes
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Solis 4 Cylinder
Power: 38kW/50HP
Spec: No engine ECU, Tier 3
Max Torque: 190Nm @ 1200 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)
Clutch: Dry mechanical actuation
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Category 2
Hydraulic Flow: 33L/min
Hydraulic Lifting: 1600kg
Hydraulic Remotes: 2 sets (4 QRC)
Front Tyres: 9.5R20 Ag/Industrial/Turf options
Rear Tyres: 13.6R28 Ag/Industrial/Turf options

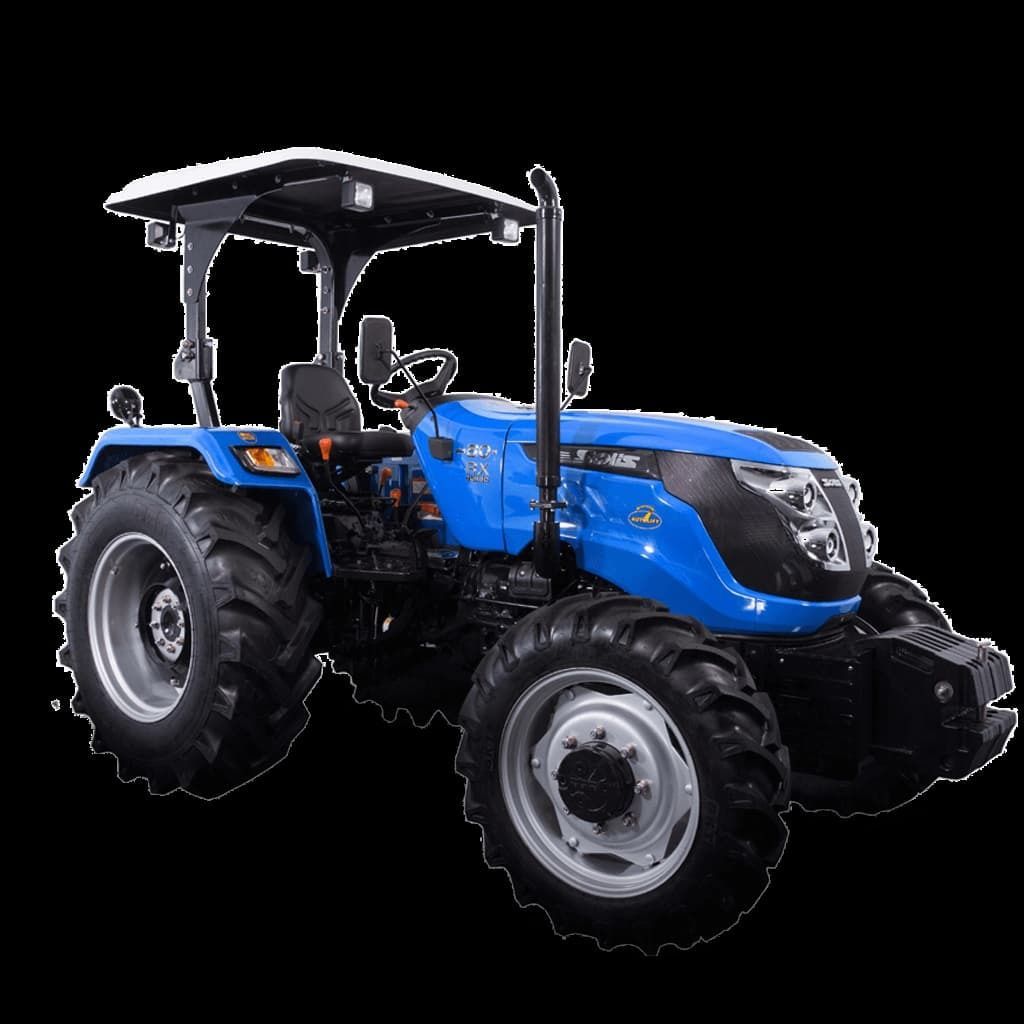

Solis S60 Tractor
The Solis S60 Tractor is a popular choice for the utility range. It can handle all types of farm-related jobs, both big and small. It can change directions quickly thanks to its full synchromesh transmission and forward/reverse shuttle. With a sunshade canopy or cab with a heater or A/C, this tractor will keep you comfortable while making farm work a breeze. It features an optional front-end loader, 4in1 bucket, pallet forks or hay forks and much more.
Measurements
Ground Clearance: 415mm
Operating Weight: ROPs 3300kg/Cab 3800kg dry (no loader or weights)
Total Width: 1980m
Total Length: 4115mm
Turning Radius: 4.8 metres
Fuel Tank Capacity: 75L
Speeds
Max Speed: 33km/h
Min Speed: 2.3km/h
PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: ROPs 2480mm/Cab 2570mm
Sunroof Canopy: Yes
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Solis 4 cylinder
Power: 45kW/60HP
Spec: No engine ECU, Tier 3
Max Torque: 230Nm @ 1200 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)
Clutch: Dry mechanical actuation
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Category 2
Hydraulic Flow: 38L/min
Hydraulic Lifting: 2000kg
Hydraulic Remotes: 2 sets (4 QRC)
Front Tyres: 9.5R20 Ag/Industrial/Turf options
Rear Tyres: 13.6R28 Ag/Industrial/Turf options

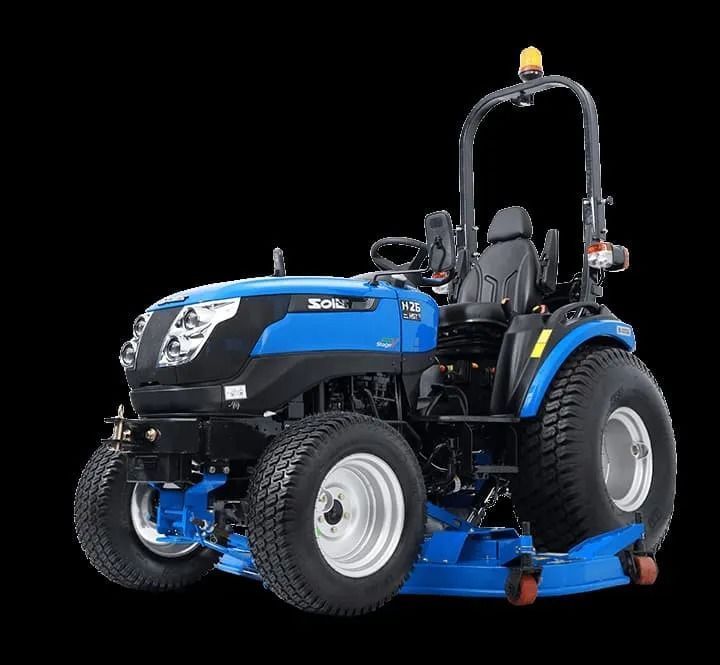

Solis 26HST Tractor
The Solis 26HST Tractor is perfect for the subcompact class thanks to its hydrostatic (HST) transmission and forward/reverse pedals. It produces low noise with an environmentally friendly engine—perfect for airports and shopping centres right through to rural properties. It includes all the bells and whistles of a big tractor, including 3-point linkage, rear and Mid PTO, rear hydraulic remote outlets and more.
Measurements
Ground Clearance: 240mm
Operating Weight: 1240kg dry (no loader or weights)
Total Width: 1050-1215mm
Total Length: 2895mm
Turning Radius: 2.3 metres
Fuel Tank Capacity: 22L
Speeds
Max Speed: 21km/h
Min Speed: N/A
PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: 2325mm
Sunroof Canopy: Optional
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Mitsubishi S3L2-3E - 3 Cylinder
Power: 19kW/26HP
Spec: No engine ECU, Tier 3
Max Torque: 76.3Nm @ 1200 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: Hydrostatic with high/low range
Clutch: No
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Rear work light
Swinging Drawbar: Yes
3 Point Linkage: Category 1
Hydraulic Flow: 18L/min
Hydraulic Lifting: 600kg
Hydraulic Remotes: 1 set (2 x QRC)
Front Tyres: 12 inch Ag/Industrial/Turf options
Rear Tyres: 18 inch Ag/Industrial/Turf options

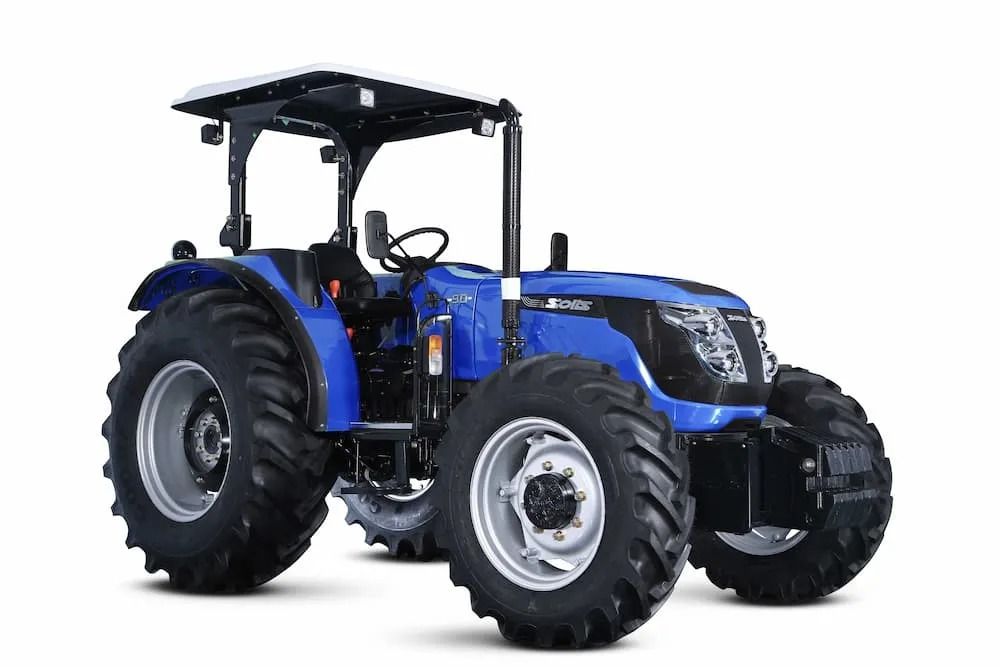

Solis S90 Tractor
If you need a tractor capable of everyday farm tasks right through to larger acreage jobs, the Solis S90 Tractor is the perfect fit. It includes less plastic and electronics, resulting in increased durability, power and reliability. Its main features include the Synchromesh transmission with forward/reverse shuttle for fast direction changes, a reliable Solis 4-cylinder engine and the choice between certified ROP’s with sunshade canopy or certified Cab with heater and A/C.
Measurements
Ground Clearance: 390mm
Operating Weight: ROPs 3800kg/Cab 4300kg dry (no loader or weights)
Total Width: 2180mm
Total Length: 4310mm
Turning Radius: 5.8 metres
Fuel Tank Capacity: 88L
Speeds
Max Speed: 35km/h
Min Speed: 1.6km/h
PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: ROPs 2610mm/Cab 2650mm
Sunroof Canopy: Yes, cab option available
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Solis 4 cylinder
Power: 67kW/90HP
Spec: No engine ECU, Tier 3
Max Torque: 375Nm @ 1400 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)
Clutch: Dry mechanical actuation
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Category 2
Hydraulic Flow: 47L/min
Hydraulic Lifting: 3000kg
Hydraulic Remotes: 2 sets (4 QRC)
Front Tyres: 12.4-24 Ag/Industrial/Turf options
Rear Tyres: 16.9-34 Ag/Industrial/Turf options

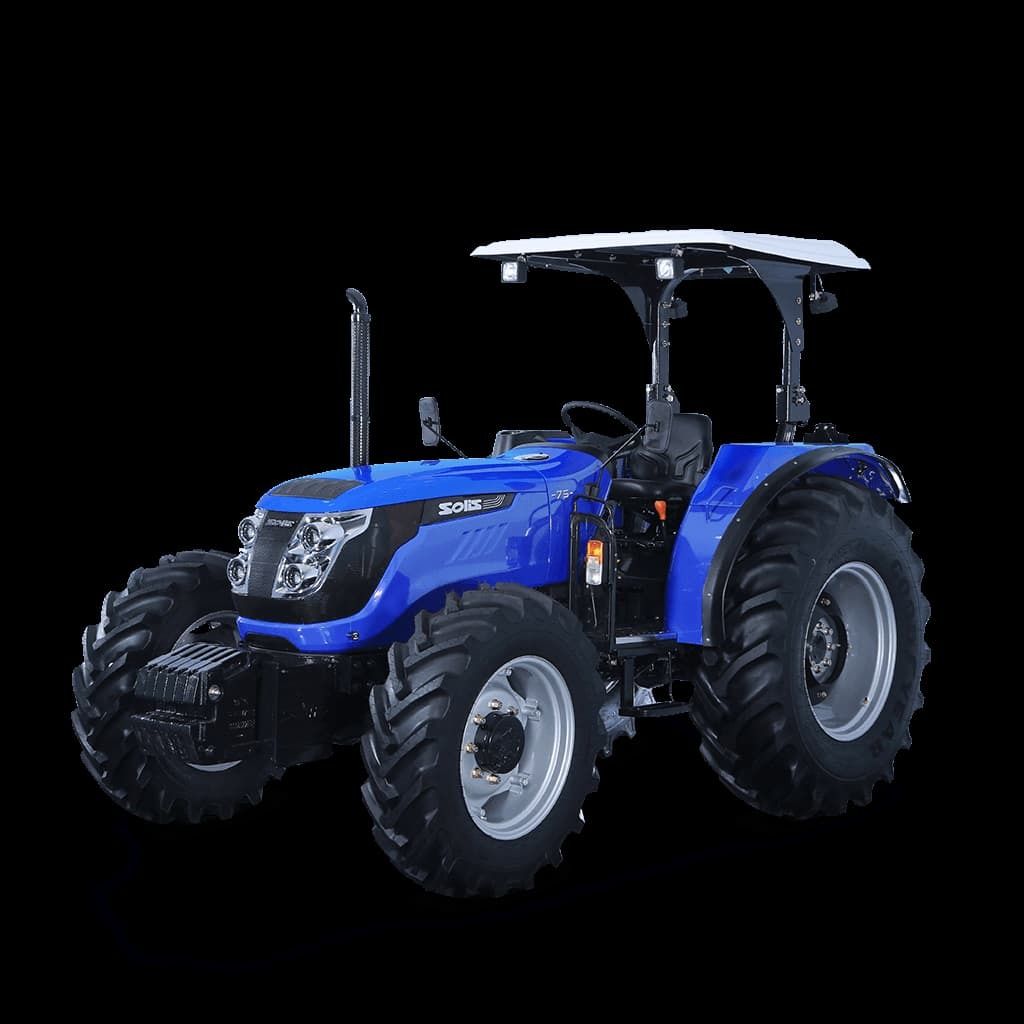

Solis S75 Tractor
The Solis S75 Tractor is the most sold horsepower Solis tractor because of its ability to handle jobs of all types and sizes. The 75HP has the strength and toughness of a big machine and the manoeuvrability of a small one. It includes a comfortable interior, synchromesh transmission with forward/reverse shuttle and options such as a Burder front end loader, a 4in1 bucket, pallet forks or hay forks.
Measurements
Ground Clearance: 385mm
Operating Weight: ROPs 3600kg/Cab 4100kg dry (no loader or weights)
Total Width: 2030mm
Total Length: 4290mm
Turning Radius: 5.8 metres
Fuel Tank Capacity: 88L
Speeds
Max Speed: 32km/h
Min Speed: 1.4km/h
PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: ROPs 2580mm/Cab 2620mm
Sunroof Canopy: Yes, cab option available
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Solis 4 cylinder
Power: 56kW/75HP
Spec: No engine ECU, Tier 3
Max Torque: 278Nm @ 1200 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)
Clutch: Dry mechanical actuation
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Category 2
Hydraulic Flow: 47L/min
Hydraulic Lifting: 3000kg
Hydraulic Remotes: 2 sets (4 QRC)
Front Tyres: 280/85R24 Ag/Industrial/Turf Options
Rear Tyres: 420/85R30 Ag/Industrial/Turf Options

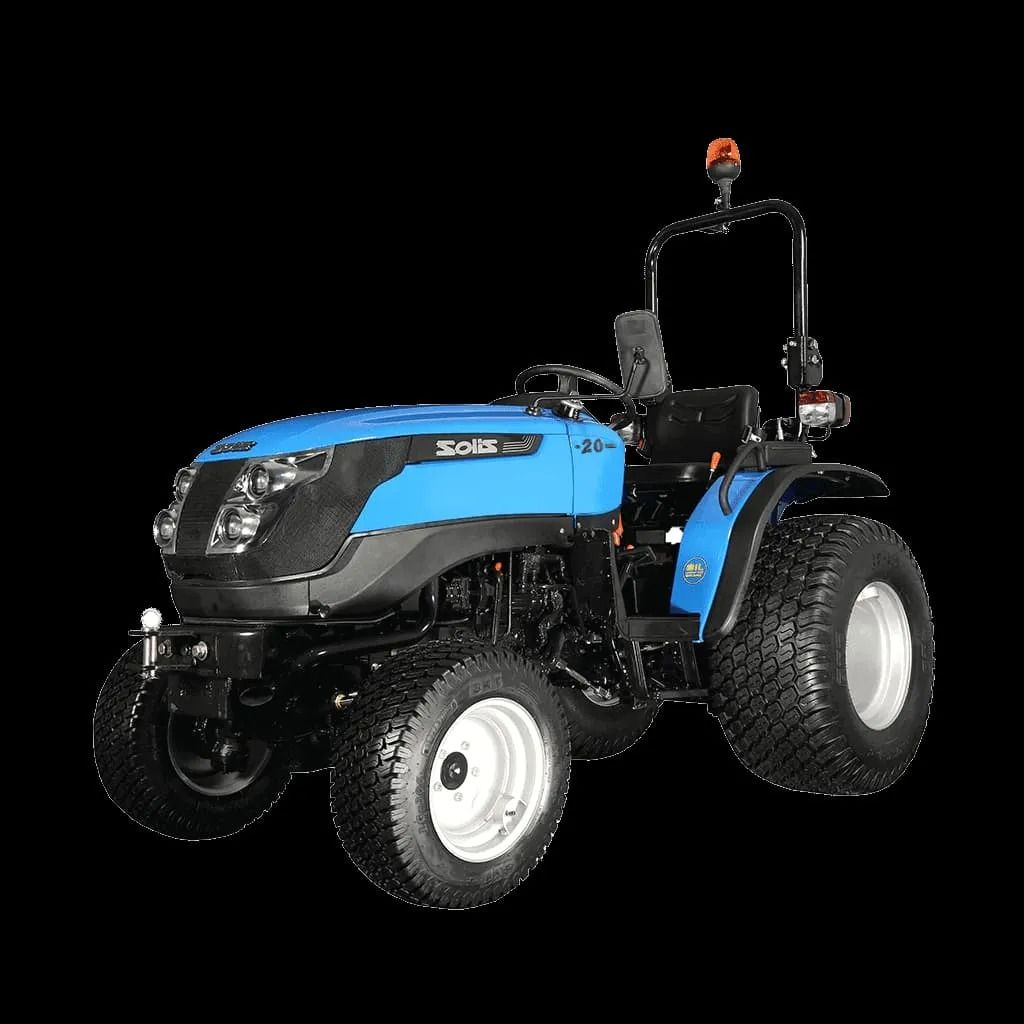

Solis S20 Tractor
Need a tractor that you can depend on? Choose the Solis S20 Tractor. This machine is the smallest in the Solis range, but still provides impressive performance. It’s perfect for all types of specialised farming jobs thanks to its environmentally friendly low noise engine and small size. This tractor features a 500 kg 3-point linkage lifting capacity and a stylish design with real steel.
Measurements
Ground Clearance: 200mm
Operating Weight: 870kg dry (no loader or weights)
Total Width: 970-1205mm spacing options
Total Length: 2555mm
Turning Radius: 2.3 metres
Fuel Tank Capacity: 26L
Speeds
Max Speed: 14.5km/h
Min Speed: 1.3km/h@ 2700
PTO (Mid and Rear): 540/540E
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: 1945mm
Sunroof Canopy: Optional
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Mitsubishi MVL-3E 3 Cylinder
Power: 15kW/20HP
Spec: No engine ECU, Tier 3
Max Torque: 47.1Nm @1900 RPM
Air Cleaner: Dry type with clogging sensor
Internal Features
Transmission: High/Low ranges with 1, 2, 3 speeds (6F/2R)
Clutch: Dry mechanical actuation
Brakes: Dry individual drum brakes
Steering: Mechanical
Differential Lock: Yes, foot operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Rear worklight
Swinging Drawbar: Yes
3 Point Linkage: Category 1
Hydraulic Flow: 14L/min
Hydraulic Lifting: 500kg
Hydraulic Remotes: 1 set (2 x QRC)
Front Tyres: 12 inch Ag/Industrial/Turf options
Rear Tyres: 18 inch Ag/Industrial/Turf options

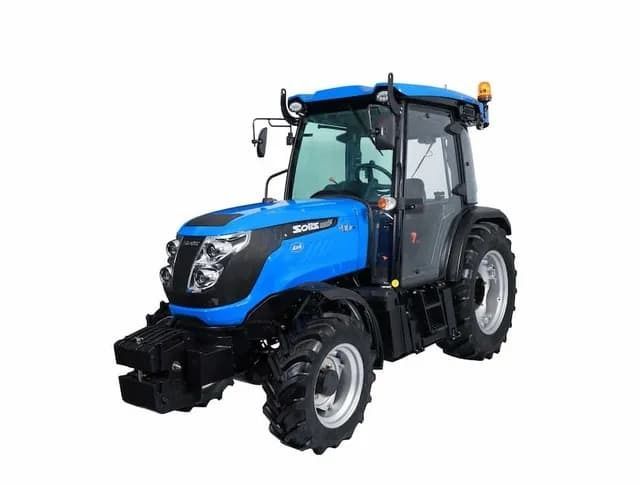

Solis N90 Tractor
The Solis N90 Tractor is as spacious as it is impressive. This modern tractor delivers high performance, easy operation with power steering and a reliable build. Its impressive turning circle makes it the ideal tractor for mowing, mulching and other farm-related jobs. The compact design combines comfort and performance to create a highly reliable tractor.
Measurements
Ground Clearance: 265mm
Operating Weight: 3260kg
Total Width: 1475mm
Total Length: 4240mm
Turning Radius:
Fuel Tank Capacity: 71L
Speeds
Max Speed: 31.07km/h @ 2000
Min Speed: 0.49km/h @ 2000
PTO (Mid and Rear): 540/540E
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: 2700mm
Sunroof Canopy: Optional
Operator Seat:
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: 4 Cylinder turbo charged engine
Power: 67kW/90HP
Spec:
Max Torque: 360Nm @ 1300 RPM
Air Cleaner: Dry air cleaner with clogging sensor
Internal Features
Transmission: Synchromesh 12F + 12R shuttle shift
Clutch: Double clutch
Brakes: Oil immersed
Steering: Power
Differential Lock: Yes, foot operated
Drive: 4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Cat-II
Hydraulic Flow:
Hydraulic Lifting: 2500kg
Hydraulic Remotes: 2 sets (4 QRC)
Front Tyres: 280/70R18
Rear Tyres: 360/70R28

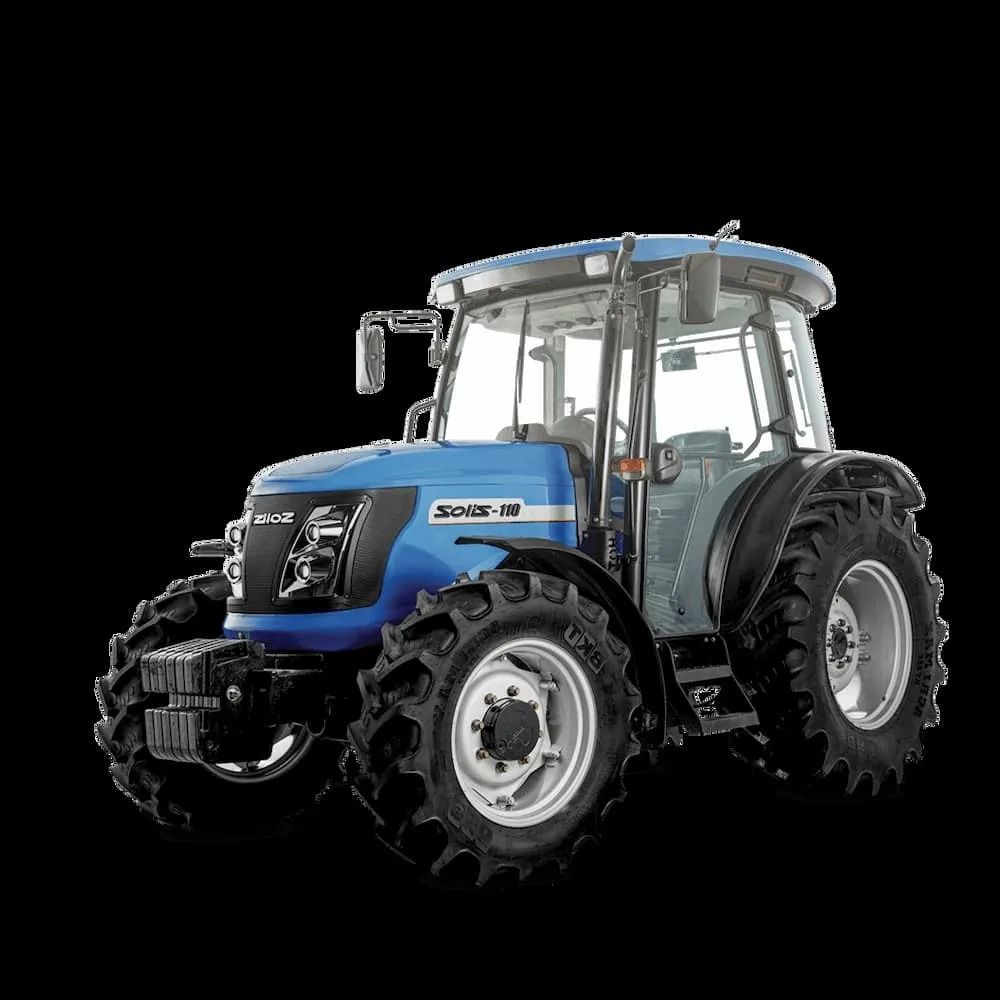

Solis S110 Tractor
Featuring 110hp, the Solis S110 Tractor is a high performing machine, perfect for any farmer. Built with quality and durability in mind, this tractor uses more steel and less plastic, making it tougher than its competitors. It includes full synchromesh transmission with creeper range, forward/reverse shuttle and the choice of certified ROP’s with sunshade canopy or certified Cab with heater and air conditioning.
Measurements
Ground Clearance: 488mm
Operating Weight: ROPs 4610kg/Cab 5010kg dry (no loader or weights)
Total Width: 2240mm
Total Length: 4380mm
Turning Radius: 6.1 metres
Fuel Tank Capacity: 117L
Speeds
Max Speed: 40km/h
Min Speed: 0.5km/h
PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement
Cab & Canopy
ROPS Certified: Yes
Heights up to ROPS: ROPs 2820mm/Cab 2870mm
Sunroof Canopy: Yes, cab option available
Operator Seat: Suspension seat with seatbelt
Switches
Neutral Safety Switch: Yes
PTO Safety Switch: Yes
Clutch Safety Start Switch: Yes
Engine
Type: Solis 4 cylinder
Power: 82kW/110HP
Spec: No engine ECU, Tier 3
Max Torque: 64Nm @ 1200 RPM
Air Cleaner: 64Nm @ 1200 RPM
Internal Features
Transmission: Synchromesh F/R Shuttle, 3 ranges + creeper, 4 speeds (24F/24R)
Clutch: Dry mechanical actuation
Brakes: Wet multi plate
Steering: Hydrostatic power steering
Differential Lock: Yes, electrical switch operated
Drive: Selectable 2WD/4WD
External Features
Forward & Rear Work lights: Yes
Swinging Drawbar: Yes
3 Point Linkage: Category 3
Hydraulic Flow: 80L/min
Hydraulic Lifting: 4500kg
Hydraulic Remotes: 3 sets (6 x QRC)
Front Tyres: 12.4-28 Ag/Industrial/Turf options
Rear Tyres: 16.9-38 Ag/Industrial/Turf options
