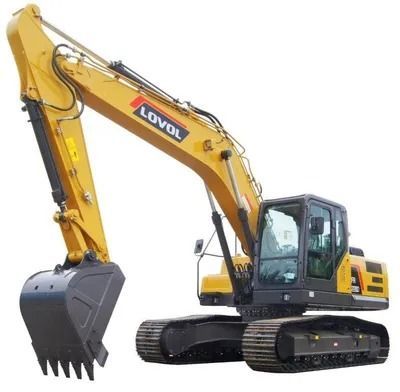

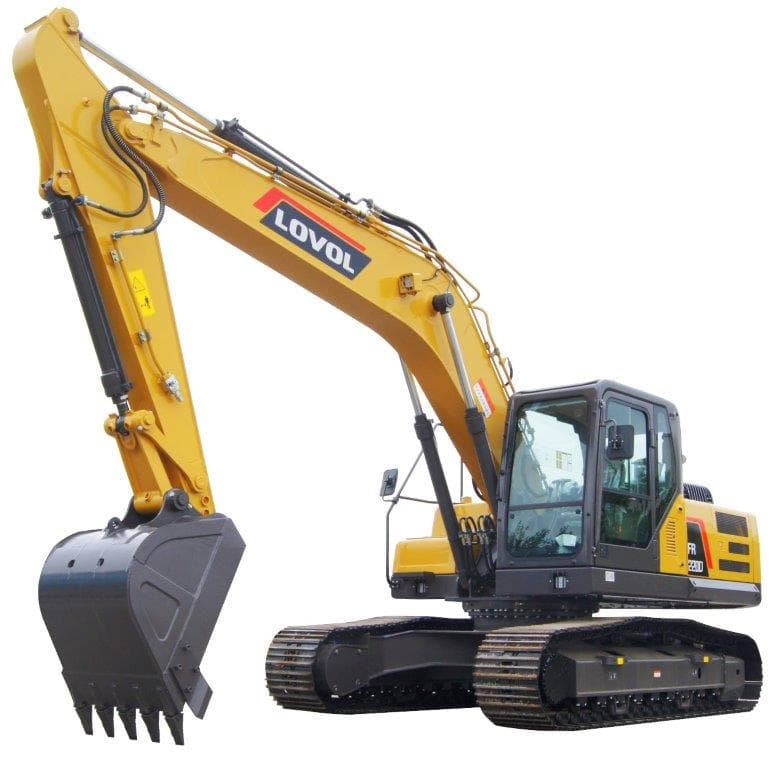

Featuring an Isuzu engine with a mechanical inline fuel pump, the 22-tonne Lovol FR220D 22T Excavator is a powerful machine, perfect for a variety of jobs. It uses a KPM hydraulic system with pilot operated joysticks. This excavator is an industry leader based on performance, reliability and quality.

Measurements

Operational Weight: 22,500kg (22.5 Tonne)

Dimensions: 2,980mm wide/3,054mm high/9,580mm long

Track Plate Width: 600mm

Fuel Tank Capacity: 385L

Travel Speed: 5.3km/h (high) 3.5km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Isuzu AA6BG1TRP-04

Power: 114kW/153HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 10,200mm

Depth (Maximum): 6,800mm

Radius (Maximum): 9,900mm

Bucket

Standard: GP with teeth (options available)

Capacity: 1m3

Digging Force: 143kN

Dipper Arm Force: 116kN

Hydraulics

System: KPM pilot control system (no electrics)

Flow Rate: 468L/ per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: Rexroth

Swing Speed: 12 RPM

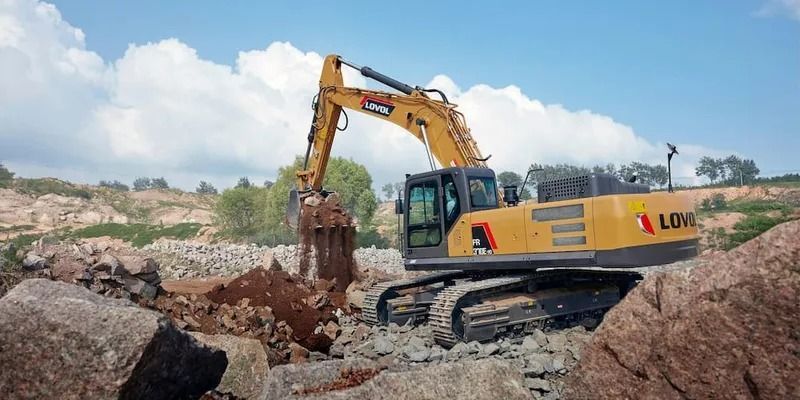

The Lovol FR370E-HD 40T Excavator was designed with performance and durability in mind. It features an Isuzu engine with a high-pressure rail system with no AdBlue/DPF/EGR, making this machine highly reliable. It includes a KPM hydraulic system with pilot operated joysticks and a cab interior common with most well-known brands. This excavator is perfect for the toughest types of heavy-duty projects.

Measurements

Operational Weight: 40,000kg (40 Tonne)

Dimensions: 3,300mm wide/3,500mm high/11,370mm long

Track Plate Width: 700mm triple pate

Fuel Tank Capacity: 630L

Travel Speed: 5km/h (high) 2.7km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Isuzu 6HK1XKSC-02

Power: 212kW/285HP

Spec: Common Rail. Tier 3. No AdBlue/DPF/EGR

Digging

Height (Maximum): 10,300mm

Depth (Maximum): 6,900mm

Radius (Maximum): 10,700mm

Bucket

Standard: GP with teeth (options available)

Capacity: 2m3

Digging Force: 244kN

Dipper Arm Force: 209kN

Hydraulics

System: KPM pilot control system

Flow Rate: 640L/per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: KPM

Swing Speed: 7 RPM

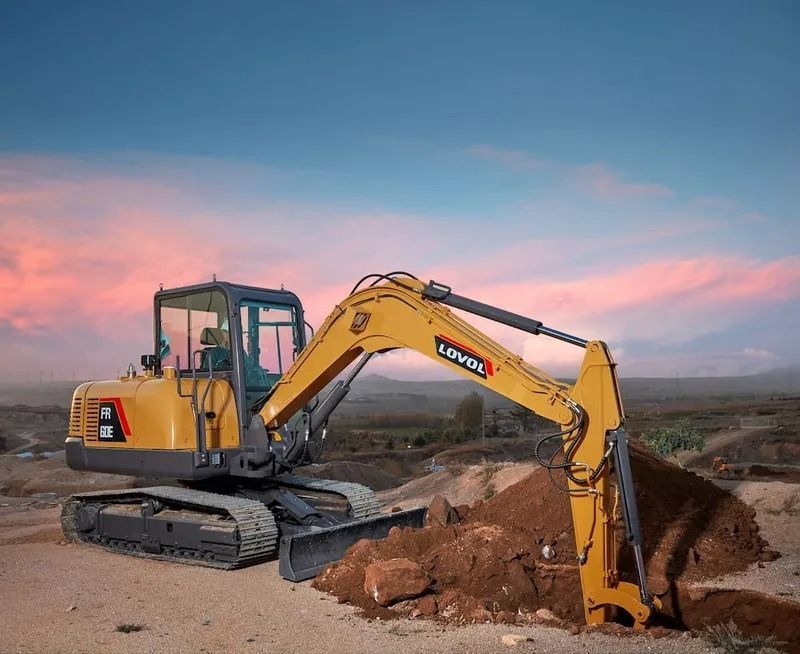

The Lovol FR60E 6T Excavator operates off the reliable Yanmar engine with no engine ECU. It uses the renowned KYB hydraulic system and boasts precise control thanks to its pilot operating joysticks and no electrics. This excavator includes A/C and a modern interior design.

Measurements

Operational Weight: 6,000kg (6 Tonne)

Dimensions: 1,950mm wide/2,660mm high/6,090 long

Track Plate Width: 400mm

Fuel Tank Capacity: 120L

Travel Speed:  4.2km/h (high) 2.4km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Yammar 4TNV94L

Power: 36kW/48HP

Spec: No Engine ECU. Tier 3

Digging

Height (Maximum): 5,405mm

Depth (Maximum): 3,660mm

Radius (Maximum): 2,660mm

Bucket

Standard: GP with teeth (option available)

Capacity: 0.2m3

Digging Force: 42kN

Dipper Arm Force: 31kN

Hydraulics

System: KYB pilot control system (no electrics)

Flow Rate: 144L/ per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: Eaton (USA)

Swing Speed: 11 RPM

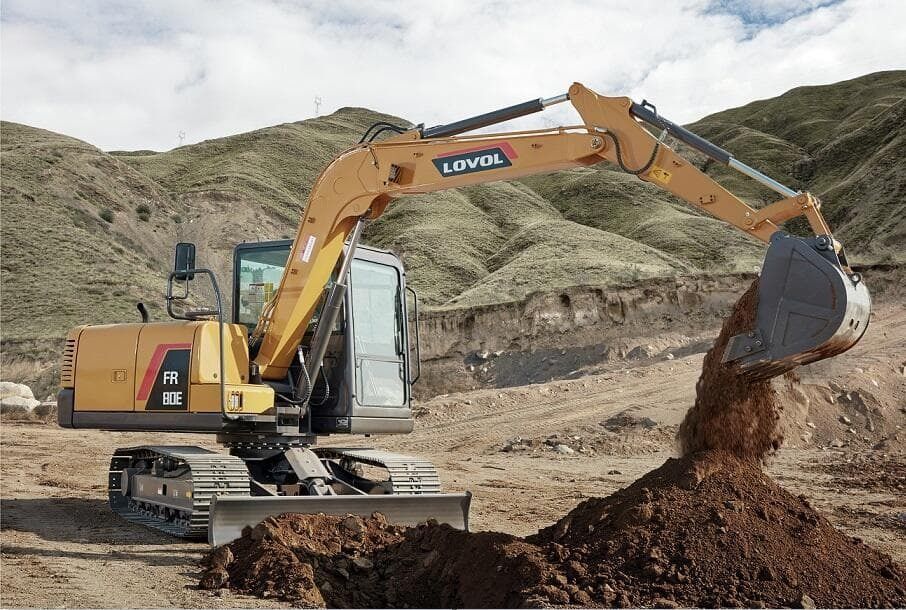

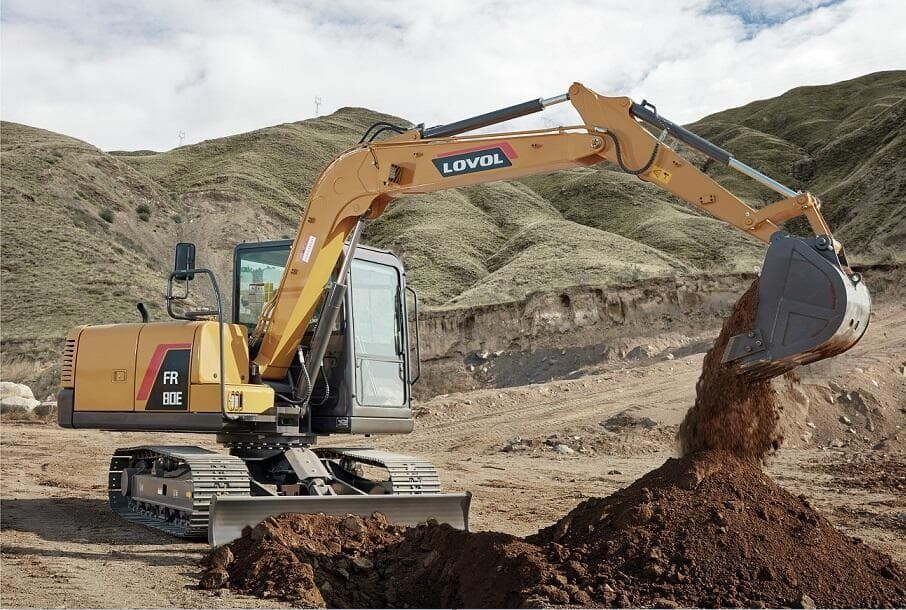

This modern excavator features a reliable Yanmar engine with no engine ECU. It is designed with increased stability and performance, making it stand out from its competition. It includes the famous KYB hydraulic system with pilot operated joysticks, making it a smart choice for all types of heavy-duty work.

Measurements

Operational Weight: 8,000kg (8 Tonne)

Dimensions: 2,275mm wide/2,650mm high/6,100mm long

Track Plate Width: 450mm

Fuel Tank Capacity: 160L

Travel Speed:  4.3km/h (high) 2.7km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Yanmar 4TNV98

Power: 44kW/60HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 7,150mm

Depth (Maximum): 4,050mm

Radius (Maximum): 6,335mm

Bucket

Standard: GP with teeth (options available)

Capacity: 0.3m3

Digging Force: 56kN

Dipper Arm Force: 38kN

Hydraulics

System: KYB pilot control system (no electrics)

Flow Rate: 160L/ per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: Eaton (USA)

Swing Speed: 11 RPM

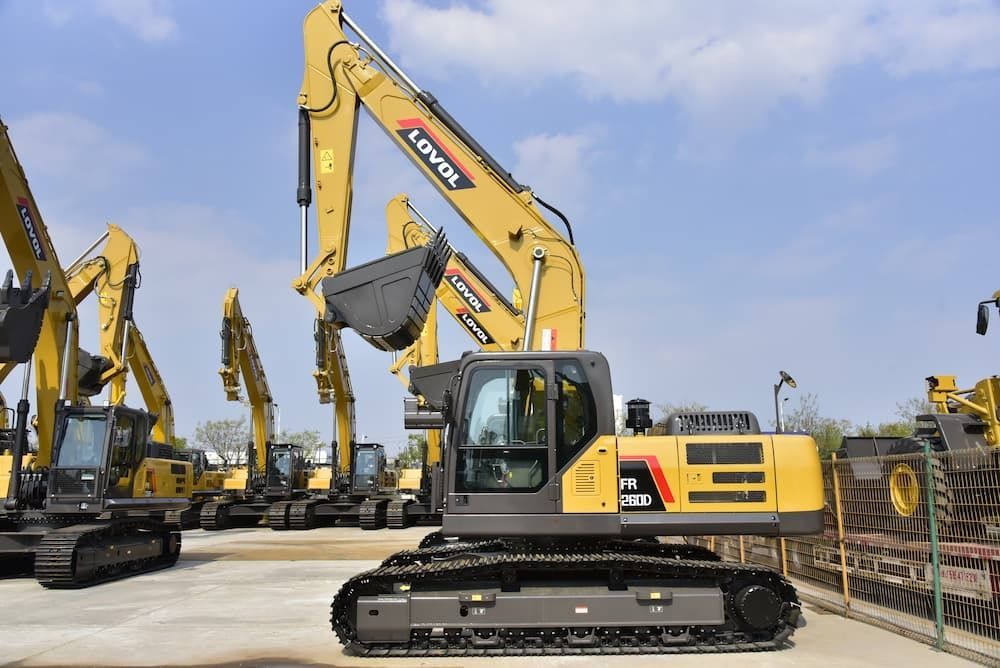

The Lovol FR260D 26T Excavator is a powerful excavator capable of tackling a wide range of construction and earthmoving jobs. It operates off an Isuzu engine and a KPM hydraulic system with pilot operated joysticks. The interior is lined and sealed for climate control, including A/C and a heater. This excavator boasts the best of both worlds, combining comfort with performance.

Measurements

Operational Weight: 26,000kg (26 Tonne)

Dimensions: 3,180mm wide/3,060mm high/9,890mm long

Track Plate Width: 600mm

Fuel Tank Capacity: 685L

Travel Speed:  5.3km/h (high) 3.5km/h

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Isuzu AA6BG1TRP-04

Power: 130kW/174HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 10,200mm

Depth (Maximum): 6,800mm

Radius (Maximum): 10,200mm

Bucket

Standard: GP with teeth (options available)

Capacity: 1.2m3

Digging Force: 179kN

Dipper Arm Force: 147kN

Hydraulics

System: KPM pilot control system (no electrics)

Flow Rate: 546L/ per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: KPM

Swing Speed: 11 RPM

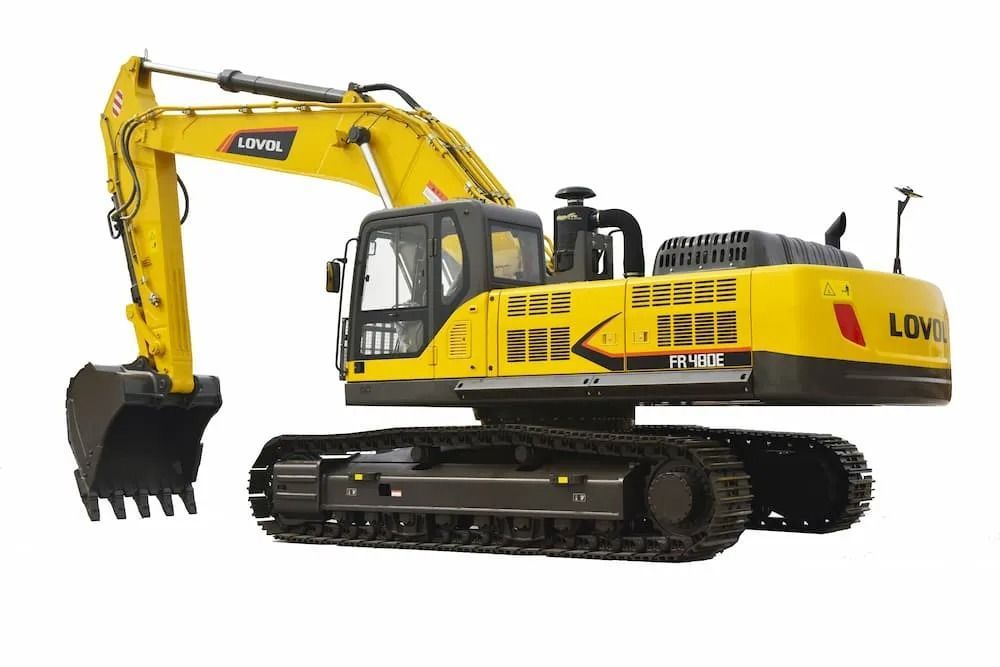

Looking for an excavator that performs time and time again? Try the Lovol FR4803-HD 48T Excavator! It includes the reliable Cummins QSM 11 common rail engine with no AdBlue, no DPF and no EGR. It features the KPM hydraulic system with pilot operated joysticks and a comfortable cab interior with an A/C and heater.

Measurements

Operational Weight: 48,000kg (48 Tonne)

Dimensions: 3,450mm wide/3,900mm high/12,250mm long

Track Plate Width: 700mm

Fuel Tank Capacity: 670L

Travel Speed:  4.6km/h (high) 2.9km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Cummins QSM11

Power: 298kW/400HP

Spec: Common Rail. Tier 3. No AdBlue/DPF/EGR

Digging

Height (Maximum): 10,600mm

Depth (Maximum): 7,300mm

Radius (Maximum): 11,500mm

Bucket

Standard: GP with teeth (options available)

Capacity: 2.2m3

Digging Force: 290kN

Dipper Arm Force: 235kN

Hydraulics

System: KPM pilot control system

Flow Rate: 760L/ per minute

Quick Hitch:

Hammer Pipes: Factory installed

Swing motor: KPM

Swing Speed: 8 RPM

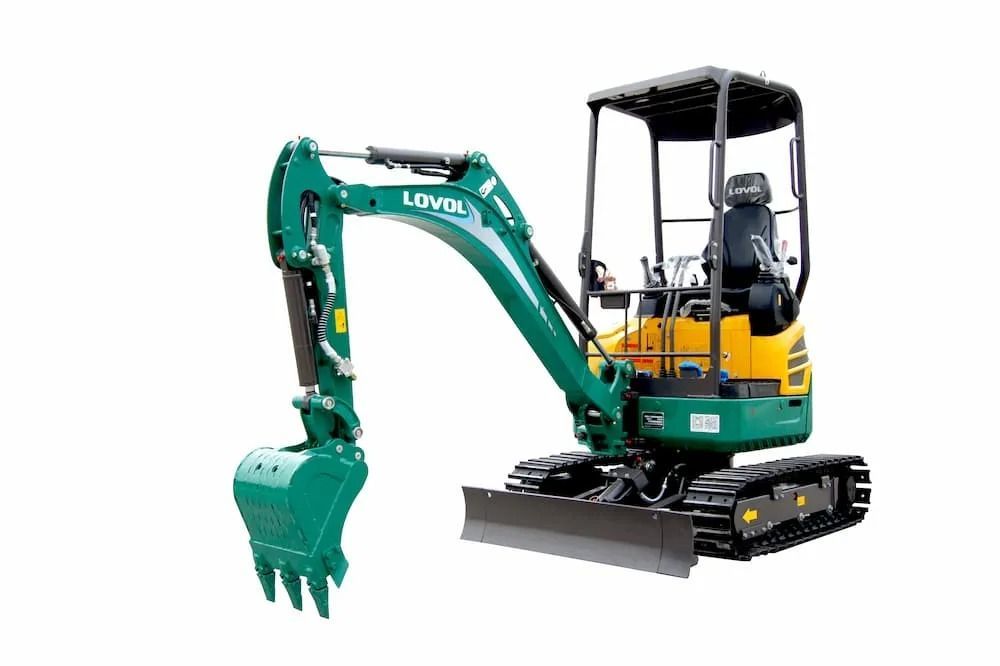

The Lovol FR18E-U 1.8T Excavator is built using components that are leading the industry. It’s designed to perform better for longer, featuring a zero-swing widening for stability, a Yanmar engine, pilot operated joysticks, opening lockable covers and shields, fuel filling point, hydraulic filling point and much more.

Measurements

Operational Weight: 1800KG (1.8 Tonne)

Dimensions: 990mm wide/2,347mm high/3,575mm long

Track Plate Width: 230mm

Fuel Tank Capacity: 20L

Travel Speed:  3.7km/h (high) 1.9km/h (slow)

Cab & Canopy

Platform: Roomy space and comfortable seat

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Yanmar

Power: 12kW/16HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 3,540mm

Depth (Maximum): 2,310mm

Radius (Maximum): 3,905mm

Bucket

Standard: GP with teeth (options available)

Capacity: 0.04m3

Digging Force: 15.2kN

Dipper Arm Force: 8.5kN

Hydraulics

System: Nabotesco (Japan) pilot control system (no electrics)

Flow Rate:

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: Eaton (USA)

Swing Speed: 9 RPM

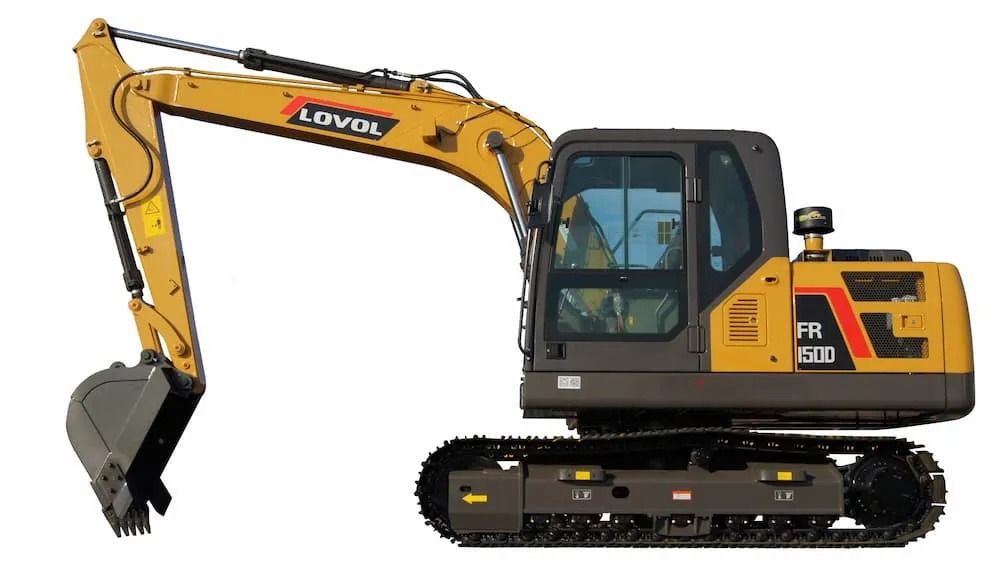

The ROPs and FOPs safety certified Lovol FR10D 15T Excavator will make your construction or earthworks project a breeze. It features a powerful Isuzu engine with a mechanical inline fuel pump and no engine ECU. This excavator will save you both time and money thanks to its durability and cutting-edge performance capabilities.

Measurements

Operational Weight: 14,500kg (14.5 Tonne)

Dimensions: 2,500mm wide/2,800mm high/7,700mm long

Track Plate Width: 500mm

Fuel Tank Capacity: 246L

Travel Speed: 5.8km/h (high) 3.6km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Isuzu BB-4BG1TRP

Power: 73kW/90HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 8,610mm

Depth (Maximum): 5,435mm

Radius (Maximum): 8,300mm

Bucket

Standard: GP with teeth (options available)

Capacity: 0.6m3

Digging Force: 95kN

Dipper Arm Force: 63kN

Hydraulics

System: KYB pilot control system (no electrics)

Flow Rate: 265L/per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: Eaton (USA)

Swing Speed: 12 RPM

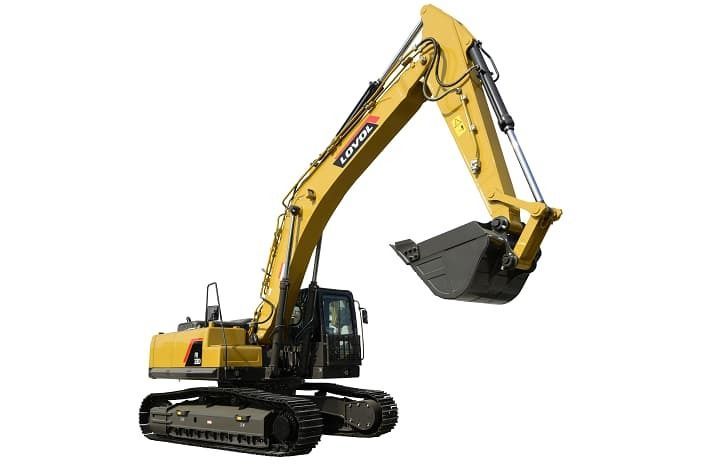

Looking for an excavator that combines comfort with performance? Well, try the Lovol FR330D 33T Excavator. It includes an Isuzu engine, mechanical fuel line pump, hydraulic pilot oil operated KPM system and a stylish and comfortable cab interior. This 33-tonne excavator will make even the toughest jobs a breeze.

Measurements

Operational Weight: 33,000kg (33 Tonne)

Dimensions: 3,300mm wide/3,290mm high/11,300mm long

Track Plate Width: 700mm

Fuel Tank Capacity: 630L

Travel Speed: 5.5km/h (high) 3.3km/h (low)

Cab & Canopy

Platform: Lined and sealed climate control A/C and heater

Safety: ROPs and FOPs certified

Joysticks: Pilot oil operated/thumb buttons

Engine

Type: Isuzu AA-6HK1XQP

Power: 191kW/256HP

Spec: No engine ECU. Tier 2

Digging

Height (Maximum): 10,100mm

Depth (Maximum): 7,300mm

Radius (Maximum): 10,900mm

Bucket

Standard: GP with teeth (options available)

Capacity: 1.8m3

Digging Force: 155kN

Dipper Arm Force: 205kN

Hydraulics

System: KPM pilot control system (no electrics)

Flow Rate: 640L/per minute

Quick Hitch: Factory installed

Hammer Pipes: Factory installed

Swing motor: KPM

Swing Speed: 9 RPM

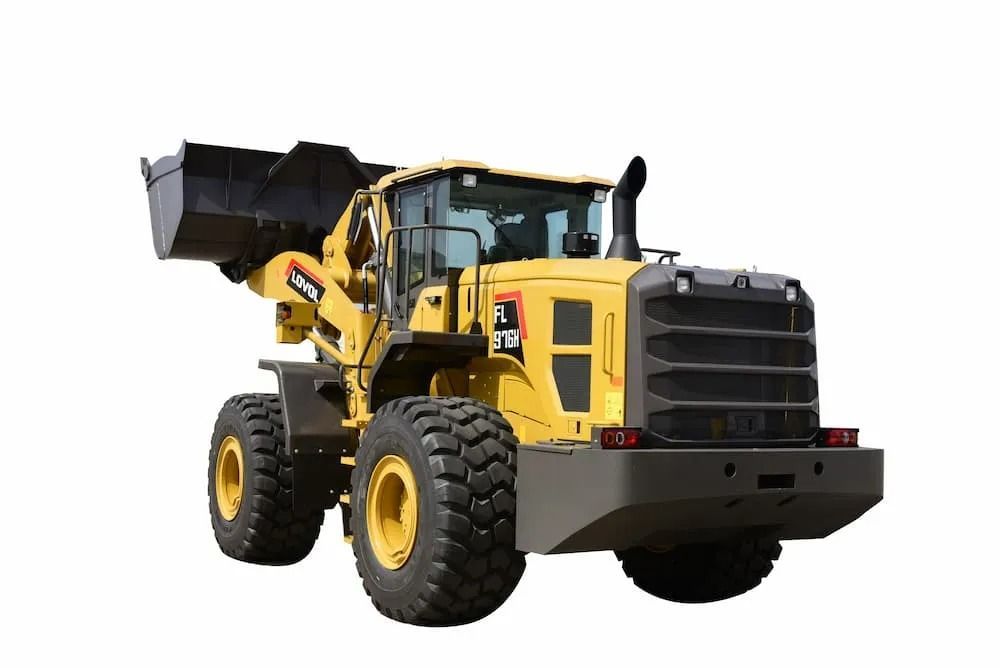

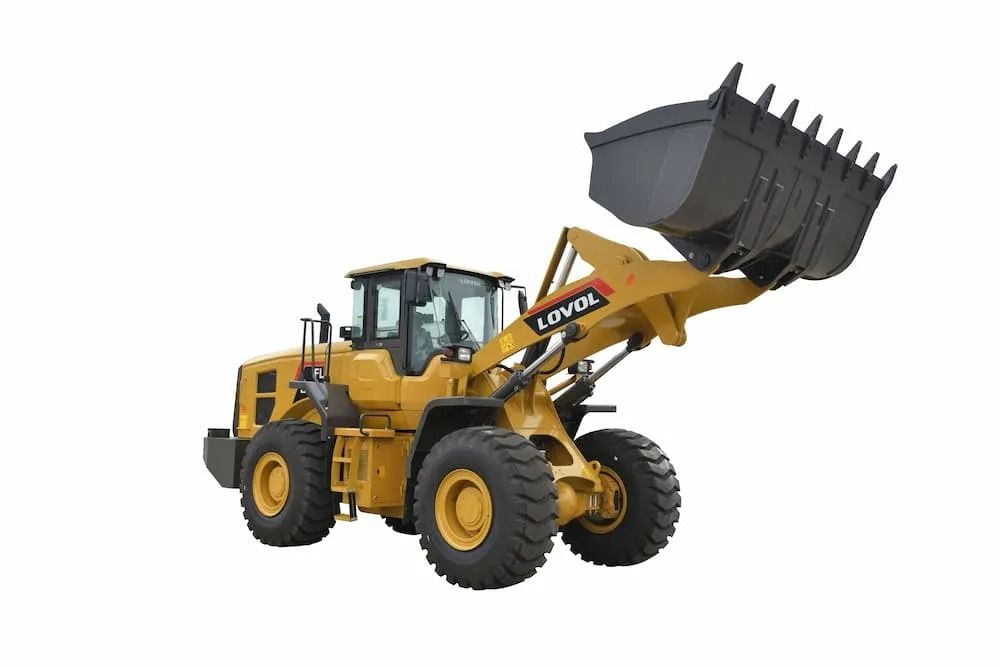

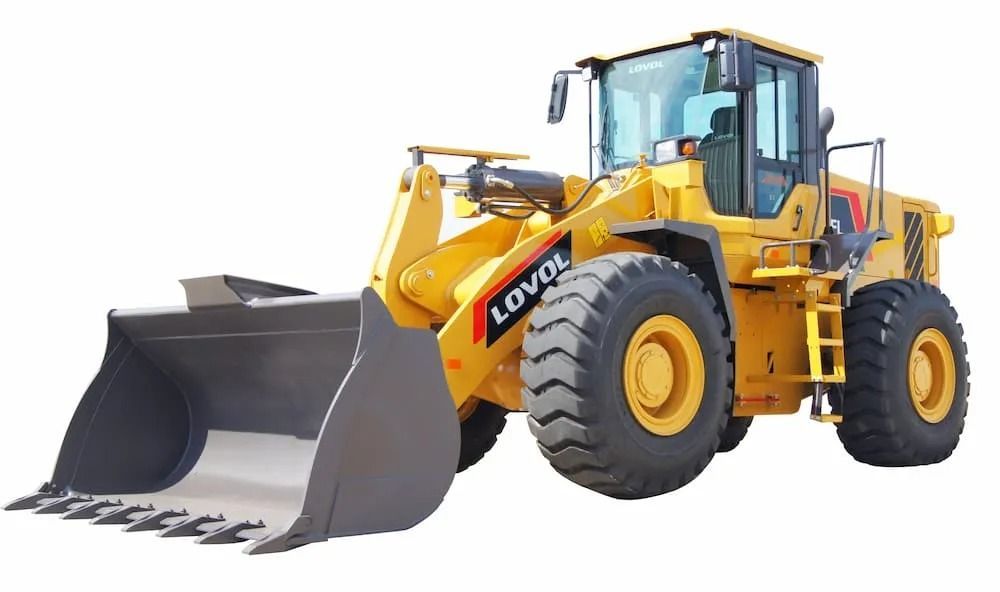

If you need a wheel loader with a 7-tonne safe workload capacity with the highly reliable Cummins QSL9.3 litre engine, check out the Lovol FL976K Wheel Loader. This beast uses the ZF 4BP230 powershift transmission with auto kick down, giving it superior performance capabilities. Featuring pilot oil operated joysticks, Meritor disc wet axles or Lovol 4-wheel disc brakes axles, this machine is built for the tough stuff.

Measurements

Operational Weight: 25,000kg (25 Tonne)

Rated Load: 7,000kg (7 Tonne)

Dimensions: 9,150mm long/3,200mm wide/3,380mm high

Tyre Size: 750/60R25 20 ply rating

Fuel Tank Capacity: 240L

Travel Speed: 38km/h

Brakes: Air over hydraulic 4 wheel disc (wet brake option available)

Cab & Canopy

Cab: Lined & sealed A/C & heater silenced

Safety: ROPs and FOPs certified

Seat: Air suspension with arm rests and seat belt

Steering: Danfoss orbital unit. Hydrostatic

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Cummins QSL9.3 Litre Common Rail

Power: 198kW/265HP

Spec: Tier 3

Fuel Pump: Common rail

Transmission: ZF 4BP230 power-shift 4F/3R with fast kick down

Bucket

Type: GP with bolt on cutting edge (options available)

Lifting Height: 4,720mm

Lifting Time: 5.7 sec

Capacity: 6m3

Hydraulics

Pressure:  22Mpa (3200psi)

3rd Function:

Quick Hitch: Factory installed

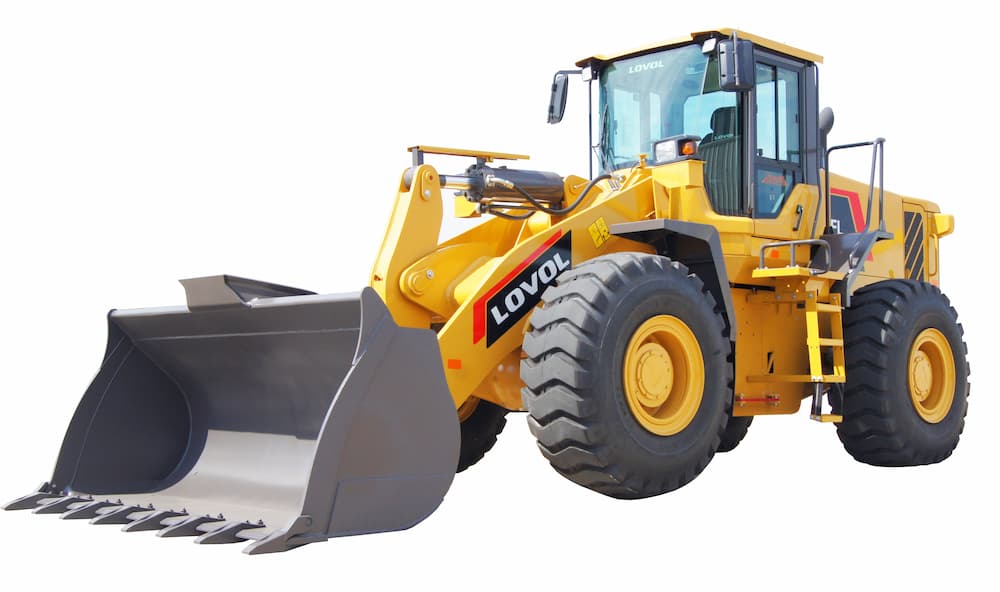

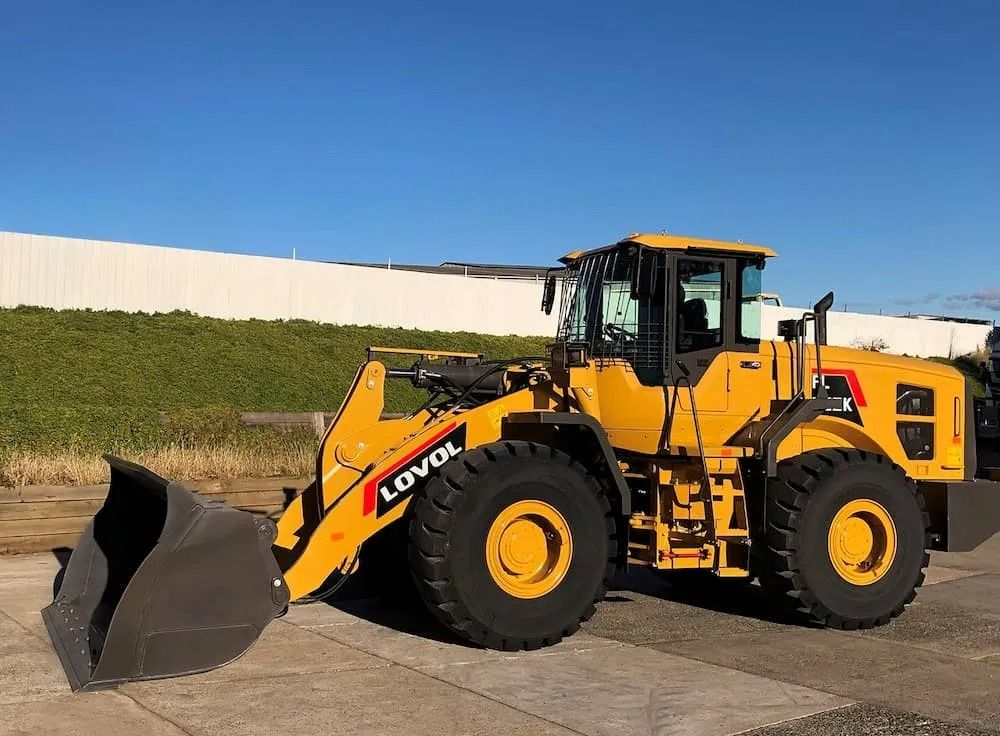

The Lovol FL958K Wheel Loader brings together luxurious comfort with outstanding performance. This wheel loader features the reliable Cummins QSB common rail engine and a fully automatic change powershift transmission. It’s renowned for its unrivalled extravagant interior, which is fully lined and sealed with A/C, armrests and a suspension seat.

Measurements

Operational Weight: 18,000kg (18 Tonne)

Rated Load: 5,500kg (5 Tonne)

Dimensions: 8,360mm long/2,745mm wide/3,380mm high

Tyre Size: 23.5-25 16 ply rating

Fuel Tank Capacity: 180L

Travel Speed: 40km/h

Brakes: Air over hydraulic 4 wheel disc/wet brake multi disc option

Cab & Canopy

Cab: Lined and sealed A/C and heater

Safety: ROPs and FOPs certified

Seat: Air suspension seat with arm rests and seat belt

Steering: Danfoss orbital unit. Hydrostatic

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Cummins QSB9.3L

Power: 180kW/240HP

Spec: Tier 3. No AdBlue, EGR, DPF

Fuel Pump: Common rail

Transmission: Powershift 2F/1R Full auto-shift

Bucket

Type: GP Quick hitch with bolt on cutting edge (options available)

Lifting Height: 4,200mm

Lifting Time: 5.7 sec

Capacity: 3.6m3

Hydraulics

Pressure:  20Mpa (3000psi)

3rd Function: Lever operated

Quick Hitch: Factory installed

Featuring a Deutz Weichai mechanical fuel pump engine and power shift transmission, the Lovol FL938H Wheel Loader is known for reliability and performance. This loader also features a comfortable interior with AM/FM audio, A/C and an air suspension seat with armrests. This model has a respected reputation for toughens.

Measurements

Operational Weight: 12,000kg (12 Tonne)

Rated Load: 3,500kg (3.5 Tonne)

Dimensions: 7,090mm long/2,820mm wide/3,550mm high

Tyre Size: 20.5-25 16 ply rating

Fuel Tank Capacity: 150L

Travel Speed: 40km/h

Brakes: Air over hydraulic 4 wheel disc

Cab & Canopy

Cab: Lined & sealed A/C & heater

Safety: ROPs and FOPs certified

Seat: Air suspension seat with arm rests and seat belt

Steering: Hydrostatic. Rexroth orbital unit

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Deutz Weichai 6 cylinder

Power: 115kW/154HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: Electronic power-shift (F3/R2)

Bucket

Type: GP (general pupose) with bolt on cutting edge (options available)

Lifting Height: 4,040mm

Lifting Time: 5.3 sec

Capacity: 1.8m3

Hydraulics

Pressure:  18Mpa (2600psi)

3rd Function: Lever operated

Quick Hitch: Factory installed

The Lovol FL962K Wheel Loader has limited electronic components, which eliminates many problematic items. It features a Deutz Weichai 6-cylinder engine, a 6-tonne safe workload capacity powershift transmission and much more. This loader is perfect for any heavy-duty task.

Measurements

Operational Weight: 22,000kg (22 Tonne)

Rated Load: 6,000kg (6 Tonne)

Dimensions: 8,540mm long/2,925mm wide/3,400mm high

Tyre Size: 23.5-25 16 ply rating

Fuel Tank Capacity: 180L

Travel Speed: 38km/h

Brakes: Air over hydraulic 4 wheel disc (wet brake option available)

Cab & Canopy

Cab: Lined & sealed A/C & heater silenced

Safety: ROPs and FOPs certified

Seat: Air suspension with arm rests and seat belt

Steering: Danfoss orbital unit. Hydrostatic

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Deutz Weichai 6 cylinder

Power: 192kW/257HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: ZF 4BP200 power-shift 4F/3R with fast kick down

Bucket

Type: GP with bolt on cutting edge (options available)

Lifting Height: 4,390mm

Lifting Time: 5.7 sec

Capacity: 4.5m3

Hydraulics

Pressure:  20Mpa (3000psi)

3rd Function:

Quick Hitch: Factory installed

With a Cummins QSB9.3 litre engine, Danfoss hydrostatic driveline, pilot operated joystick and much more, the Lovol FL962K Wheel Loader boasts impressive capabilities. Thanks to its modern design, it changes direction smoother than other models, has less wheel slippage, increased fuel savings and superior operator comfort.

Measurements

Operational Weight: 20,000kg (20 Tonne)

Rated Load: 6,000kg (6 Tonne)

Dimensions: 8,870mm long/3,300mm wide/3,620mm high

Tyre Size: 23.5R25 L5 tubeless radial

Fuel Tank Capacity: 180L

Travel Speed: 44km/h

Brakes: ZF oil immersed multi disc / ZF wet brake axles

Cab & Canopy

Cab: Lined & sealed A/C & heater silenced

Safety: ROPs and FOPs certified

Seat: Air suspension with arm rests and seat belt

Steering: Danfoss orbital unit. Hydrostatic

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Cummins QSB7

Power: 160kW/228HP

Spec: Tier 3

Fuel Pump: Common rail

Transmission: Danfoss Hydrostatic with joystick thumb action F/R shift

Bucket

Type: GP Quick hitch with bolt on cutting edge (options available)

Lifting Height: 5,300mm

Lifting Time: 5.7 sec

Capacity: 4m3

Hydraulics

Pressure:  20Mpa (3000psi) Danfoss pump

3rd Function: Lever operated

Quick Hitch: Factory installed

Enjoy a machine that operates seamlessly with the Lovol FL958H Wheel Loader. Because it has limited electronic components, it’s less likely to experience issues or breakdowns. It runs off a Deutz Weichai mechanical fuel pump engine with a 5-tonne safe workload capacity.

Measurement

Operational Weight: 18,000kg (18 Tonne)

Rated Load: 5,500kg (5 Tonne)

Dimensions: 8,360mm long/2,745mm wide/3,380mm high

Tyre Size: 23.5-25 16 ply rating

Fuel Tank Capacity: 180L

Travel Speed: 38km/h

Brakes: Air over hydraulic 4 wheel disc

Cab & Canopy

Cab: Lined & sealed A/C & heater

Safety: ROPs and FOPs certified

Seat: Air suspension seat with arm rests and seat belt

Steering: Air suspension seat with arm rests and seat belt

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Deutz Weichai 6 cylinder

Power: 178kW/238HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: ZF 4BP200 power-shift 4F/3R with fast kick down

Bucket

Type: GP (general purpose) with bolt on cutting edge (options available)

Lifting Height: 4,200mm

Lifting Time: 5.7 sec

Capacity: 3.5m3

Hydraulics

Pressure:  18Mpa (3000psi) Danfoss Pump.

3rd Function: Lever operated

Quick Hitch: Factory installed

For a wheel loader that won’t let you know, try the Lovol FL942H Wheel Loader. It includes a range of modern features including a Deutz Weichai mechanical fuel pump engine, 4-tonne safe workload capacity, 4-wheel disc brakes and a luxurious lined and sealed interior. This loader will save you both time and money thanks to its durability and reliability.

Measurements

Operational Weight: 13,000kg (13 Tonne)

Rated Load: 4,000kg (4 Tonne)

Dimensions: 7,090mm long/2,820mm wide/3,550mm high

Tyre Size: 20.5-25 16 ply rating

Fuel Tank Capacity: 150L

Travel Speed: 40km/h

Brakes: Air over hydraulic 4 wheel disc

Cab & Canopy

Cab: Lined & sealed A/C & heater

Safety: ROPs and FOPs certified

Seat: Air suspension seat with arm rests and seat belt

Steering: Hydrostatic. Rexroth orbital unit

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Deutz Weichai 6 cylinder

Power: 115kW/154HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: Electronic power-shift (F3/R2)

Bucket

Type: GP (general purpose) with bolt on cutting edge (options available)

Lifting Height: 4,040mm

Lifting Time: 5.3 sec

Capacity: 3m3

Hydraulics

Pressure: 18Mpa (2600psi)

3rd Function: Lever operated. No electrics

Quick Hitch: Factory installed

The Lovol FL936H Wheel Loader eliminates the risk of electrical issues while still featuring impressive performance capabilities. This machine operates off a Deutz Weichai engine and uses a lever-operated power shift transmission. With a luxurious interior and toughness that will match any brand of machine, it’s hard to beat this wheel loader.

Measurements

Operational Weight: 12,000kg (12 Tonne)

Rated Load: 3,500kg (3.5 Tonne)

Dimensions: 7,090mm long/2,820mm wide/3,550mm high

Tyre Size: 20.5-25 16 ply rating

Fuel Tank Capacity: 150L

Travel Speed: 40km/h

Brakes: Air over hydraulic 4 wheel disc

Cab & Canopy

Cab: Lined & sealed A/C & heater

Safety: ROPs and FOPs certified

Seat: Air suspension seat with arm rests and seat belt

Steering: Hydrostatic. Rexroth orbital unit

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Deutz Weichai 6 cylinder

Power: 115kW/154HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: Electronic power-shift

Bucket

Type: GP (general purpose) with bolt on cutting edge (options available)

Lifting Height: 4,040mm

Lifting Time: 5.3 sec

Capacity: 1.8m3

Hydraulics

Pressure: 18Mpa (2600psi)

3rd Function: Lever operated

Quick Hitch: Factory installed

With a Cummins QSL9.3 litre engine and a ZF 4BP230 powershift transmission with kick down, the Lovol FL968H Wheel Loader is an industry leader. This wheel loader features pilot operated joysticks, A/C, an audio system, 4-wheel disc brakes and much more.

Measurements

Operational Weight: 23,000kg (23 Tonne)

Rated Load: 6,500kg (6.5 Tonne)

Dimensions: 8,760mm long/3,050mm wide/3,460mm high

Tyre Size: 26.5-25 16 ply rating

Fuel Tank Capacity: 240L

Travel Speed: 38km/h

Brakes: Air over hydraulic 4 wheel disc (wet brake option available)

Cab & Canopy

Cab: Lined & sealed A/C & heater silenced

Safety: ROPs and FOPs certified

Seat: Air suspension with arm rests and seat belt

Steering: Danfoss orbital unit. Hydrostatic

Joysticks: Pilot oil operated with float position

Rear Window: Wiper and demister

Windscreen: Protection grill

Rear View Camera: 7" screen

Engine

Brand: Cummins QSL9.3 Litre Common Rail

Power: 192kW/257HP

Spec: No engine ECU. Tier 2

Fuel Pump: Mechanical inline

Transmission: ZF 4BP230 power-shift 4F/3R with fast kick down

Bucket

Type: GP with bolt on cutting edge (options available)

Lifting Height: 4,390mm

Lifting Time: 5.7 sec

Capacity: 5m3

Hydraulics

Pressure: 20Mpa (3000psi)

3rd Function:

Quick Hitch: Factory installed

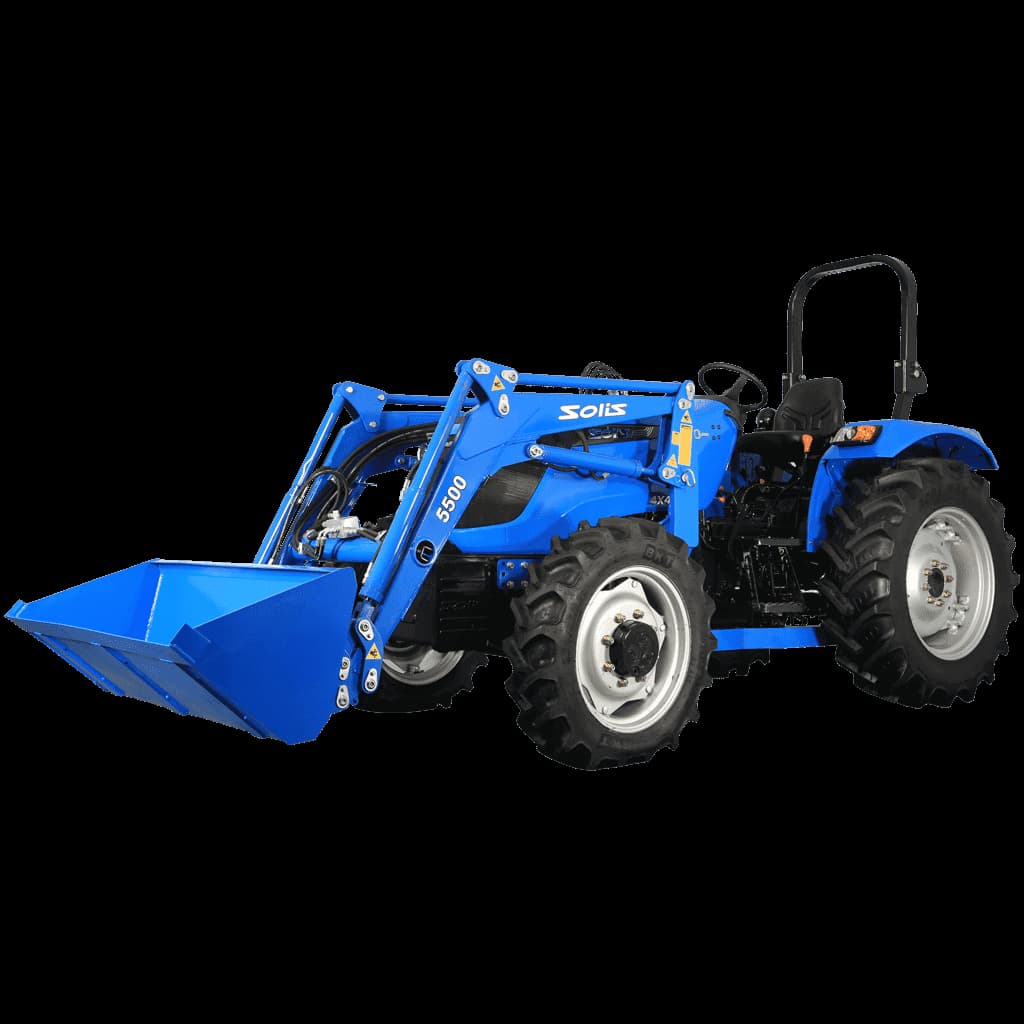

The Solis S50 Tractor is small enough to handle tasks that require manoeuvrability, yet tough enough to handle those larger jobs. Featuring a full synchromesh transmission and forward/reverse shuttle, this tractor is the ideal machine for the hobby farmer. You’ll enjoy high performance, durability and ease of operation. It includes a 3-point linkage, rear PTO, rear hydraulic remote outlets and more.

Measurements

Ground Clearance: 293mm

Operating Weight: 3200kg dry (no loader or weights)

Total Width: 1840mm

Total Length: 3925mm

Turning Radius: 4.7 metres

Fuel Tank Capacity: 71L

Speeds

Max Speed: 33km/h

Min Speed: 2.3km/h

PTO (Mid and Rear): 540/540E RPM - wet clutch engagement

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: 2430mm

Sunroof Canopy: Yes

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Solis 4 Cylinder

Power: 38kW/50HP

Spec: No engine ECU, Tier 3

Max Torque: 190Nm @ 1200 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)

Clutch: Dry mechanical actuation

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Yes

Swinging Drawbar: Yes

3 Point Linkage: Category 2

Hydraulic Flow: 33L/min

Hydraulic Lifting: 1600kg

Hydraulic Remotes: 2 sets (4 QRC)

Front Tyres: 9.5R20 Ag/Industrial/Turf options

Rear Tyres: 13.6R28 Ag/Industrial/Turf options

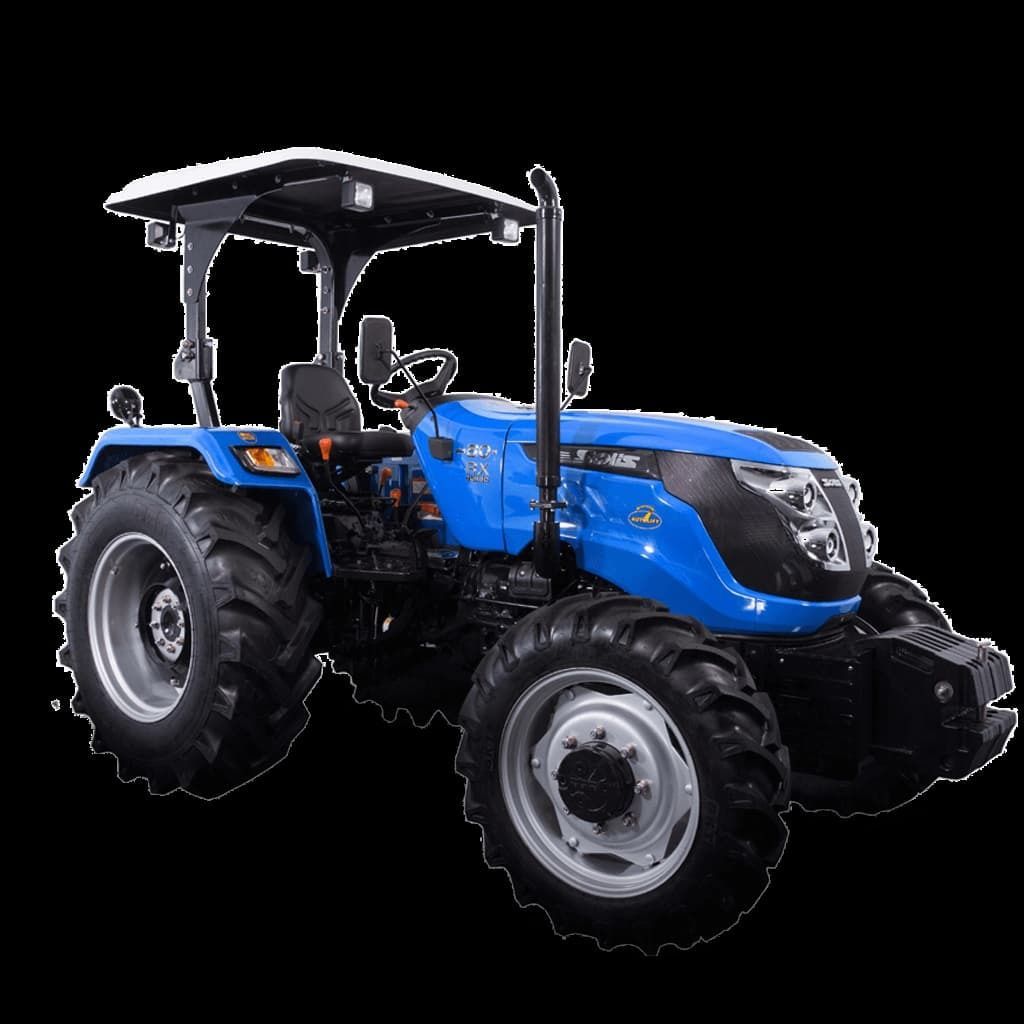

The Solis S60 Tractor is a popular choice for the utility range. It can handle all types of farm-related jobs, both big and small. It can change directions quickly thanks to its full synchromesh transmission and forward/reverse shuttle. With a sunshade canopy or cab with a heater or A/C, this tractor will keep you comfortable while making farm work a breeze. It features an optional front-end loader, 4in1 bucket, pallet forks or hay forks and much more.

Measurements

Ground Clearance: 415mm

Operating Weight: ROPs 3300kg/Cab 3800kg dry (no loader or weights)

Total Width: 1980m

Total Length: 4115mm

Turning Radius: 4.8 metres

Fuel Tank Capacity: 75L

Speeds

Max Speed: 33km/h

Min Speed: 2.3km/h

PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: ROPs 2480mm/Cab 2570mm

Sunroof Canopy: Yes

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Solis 4 cylinder

Power: 45kW/60HP

Spec: No engine ECU, Tier 3

Max Torque: 230Nm @ 1200 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)

Clutch: Dry mechanical actuation

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Yes

Swinging Drawbar: Yes

3 Point Linkage: Category 2

Hydraulic Flow: 38L/min

Hydraulic Lifting: 2000kg

Hydraulic Remotes: 2 sets (4 QRC)

Front Tyres: 9.5R20 Ag/Industrial/Turf options

Rear Tyres: 13.6R28 Ag/Industrial/Turf options

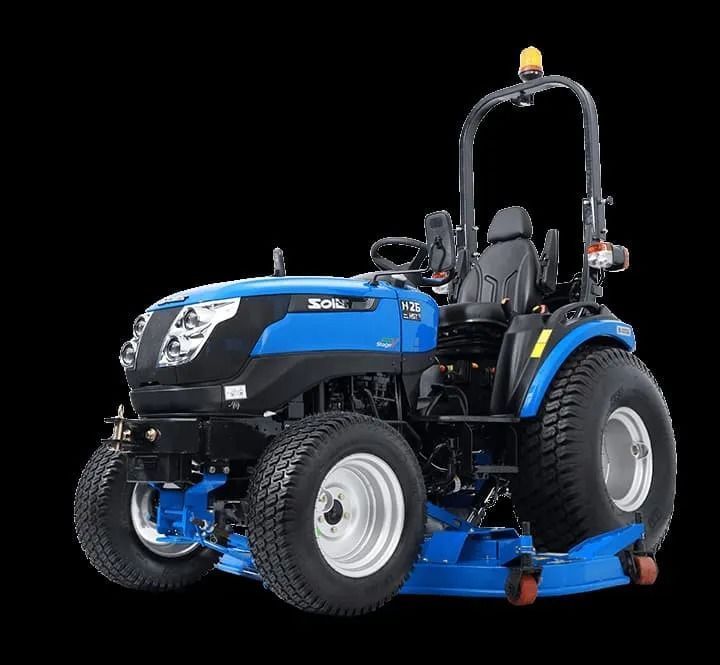

The Solis 26HST Tractor is perfect for the subcompact class thanks to its hydrostatic (HST) transmission and forward/reverse pedals. It produces low noise with an environmentally friendly engine—perfect for airports and shopping centres right through to rural properties. It includes all the bells and whistles of a big tractor, including 3-point linkage, rear and Mid PTO, rear hydraulic remote outlets and more.

Measurements

Ground Clearance: 240mm

Operating Weight: 1240kg dry (no loader or weights)

Total Width: 1050-1215mm

Total Length: 2895mm

Turning Radius: 2.3 metres

Fuel Tank Capacity: 22L

Speeds

Max Speed: 21km/h

Min Speed: N/A

PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: 2325mm

Sunroof Canopy: Optional

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Mitsubishi S3L2-3E - 3 Cylinder

Power: 19kW/26HP

Spec: No engine ECU, Tier 3

Max Torque: 76.3Nm @ 1200 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: Hydrostatic with high/low range

Clutch: No

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Rear work light

Swinging Drawbar: Yes

3 Point Linkage: Category 1

Hydraulic Flow: 18L/min

Hydraulic Lifting: 600kg

Hydraulic Remotes: 1 set (2 x QRC)

Front Tyres: 12 inch Ag/Industrial/Turf options

Rear Tyres: 18 inch Ag/Industrial/Turf options

If you need a tractor capable of everyday farm tasks right through to larger acreage jobs, the Solis S90 Tractor is the perfect fit. It includes less plastic and electronics, resulting in increased durability, power and reliability. Its main features include the Synchromesh transmission with forward/reverse shuttle for fast direction changes, a reliable Solis 4-cylinder engine and the choice between certified ROP’s with sunshade canopy or certified Cab with heater and A/C.

Measurements

Ground Clearance: 390mm

Operating Weight: ROPs 3800kg/Cab 4300kg dry (no loader or weights)

Total Width: 2180mm

Total Length: 4310mm

Turning Radius: 5.8 metres

Fuel Tank Capacity: 88L

Speeds

Max Speed: 35km/h

Min Speed: 1.6km/h

PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: ROPs 2610mm/Cab 2650mm

Sunroof Canopy: Yes, cab option available

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Solis 4 cylinder

Power: 67kW/90HP

Spec: No engine ECU, Tier 3

Max Torque: 375Nm @ 1400 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)

Clutch: Dry mechanical actuation

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Yes

Swinging Drawbar: Yes

3 Point Linkage: Category 2

Hydraulic Flow: 47L/min

Hydraulic Lifting: 3000kg

Hydraulic Remotes: 2 sets (4 QRC)

Front Tyres: 12.4-24 Ag/Industrial/Turf options

Rear Tyres: 16.9-34 Ag/Industrial/Turf options

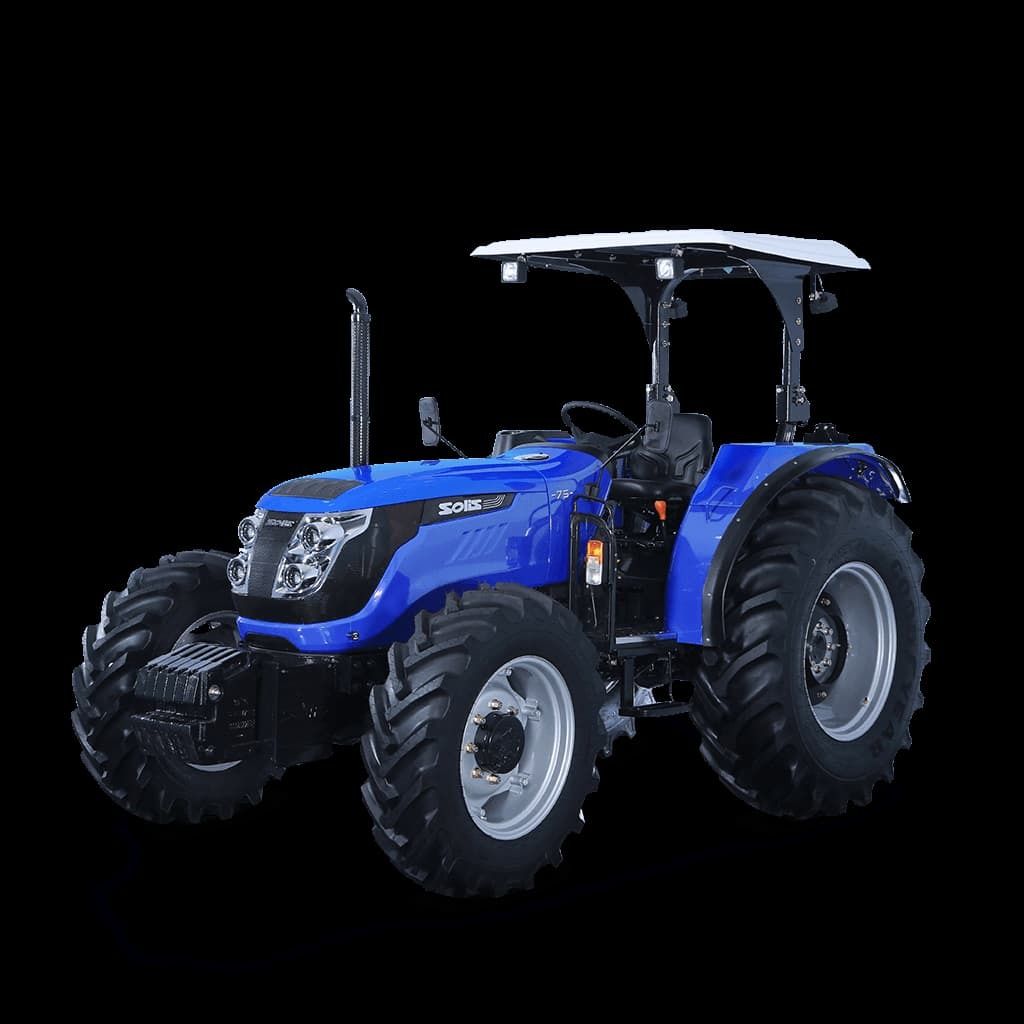

The Solis S75 Tractor is the most sold horsepower Solis tractor because of its ability to handle jobs of all types and sizes. The 75HP has the strength and toughness of a big machine and the manoeuvrability of a small one. It includes a comfortable interior, synchromesh transmission with forward/reverse shuttle and options such as a Burder front end loader, a 4in1 bucket, pallet forks or hay forks.

Measurements

Ground Clearance: 385mm

Operating Weight: ROPs 3600kg/Cab 4100kg dry (no loader or weights)

Total Width: 2030mm

Total Length: 4290mm

Turning Radius: 5.8 metres

Fuel Tank Capacity: 88L

Speeds

Max Speed: 32km/h

Min Speed: 1.4km/h

PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: ROPs 2580mm/Cab 2620mm

Sunroof Canopy: Yes, cab option available

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Solis 4 cylinder

Power: 56kW/75HP

Spec: No engine ECU, Tier 3

Max Torque: 278Nm @ 1200 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: Synchromesh F/R shuttle, 3 ranges, 4 speeds (12F/12R)

Clutch: Dry mechanical actuation

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Yes

Swinging Drawbar: Yes

3 Point Linkage: Category 2

Hydraulic Flow: 47L/min

Hydraulic Lifting: 3000kg

Hydraulic Remotes: 2 sets (4 QRC)

Front Tyres: 280/85R24 Ag/Industrial/Turf Options

Rear Tyres: 420/85R30 Ag/Industrial/Turf Options

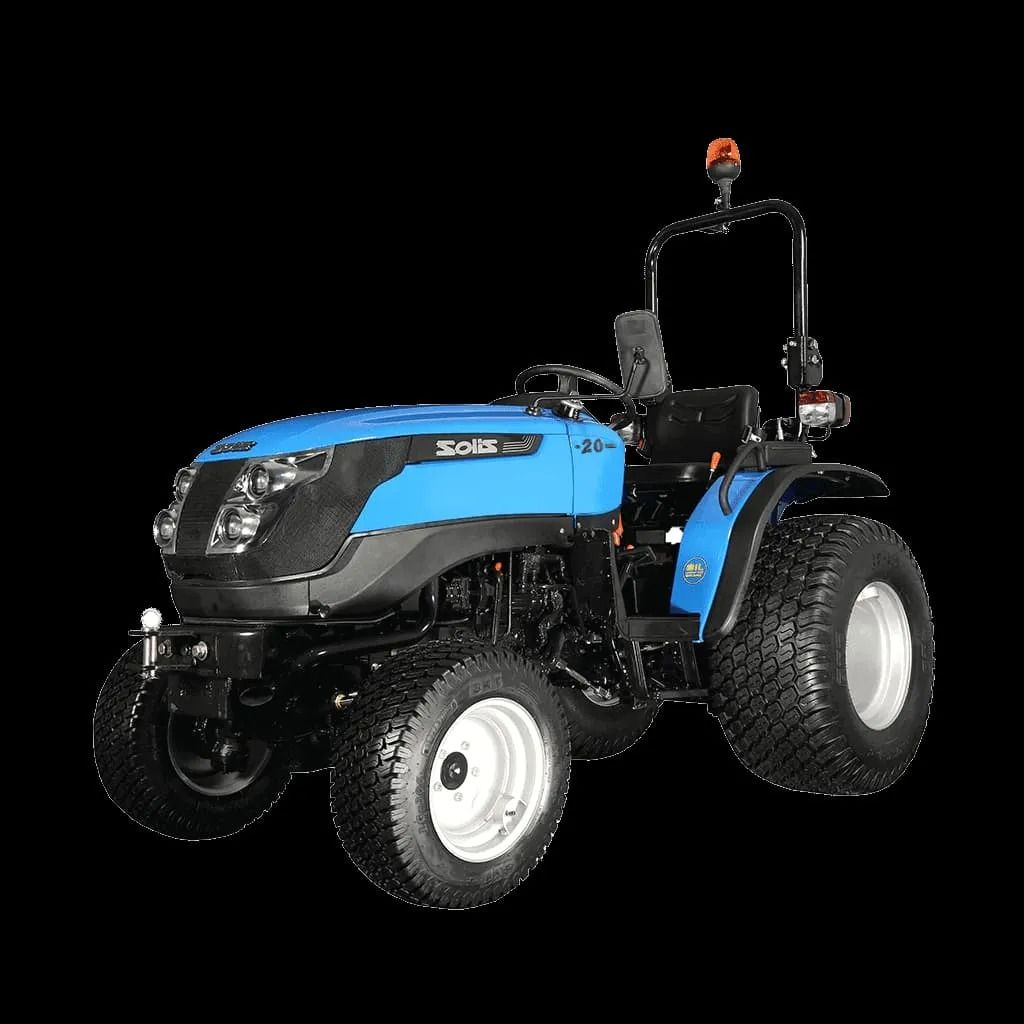

Need a tractor that you can depend on? Choose the Solis S20 Tractor. This machine is the smallest in the Solis range, but still provides impressive performance. It’s perfect for all types of specialised farming jobs thanks to its environmentally friendly low noise engine and small size. This tractor features a 500 kg 3-point linkage lifting capacity and a stylish design with real steel.

Measurements

Ground Clearance: 200mm

Operating Weight: 870kg dry (no loader or weights)

Total Width: 970-1205mm spacing options

Total Length: 2555mm

Turning Radius: 2.3 metres

Fuel Tank Capacity: 26L

Speeds

Max Speed: 14.5km/h

Min Speed: 1.3km/h@ 2700

PTO (Mid and Rear): 540/540E

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: 1945mm

Sunroof Canopy: Optional

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Mitsubishi MVL-3E 3 Cylinder

Power: 15kW/20HP

Spec: No engine ECU, Tier 3

Max Torque: 47.1Nm @1900 RPM

Air Cleaner: Dry type with clogging sensor

Internal Features

Transmission: High/Low ranges with 1, 2, 3 speeds (6F/2R)

Clutch: Dry mechanical actuation

Brakes: Dry individual drum brakes

Steering: Mechanical

Differential Lock: Yes, foot operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights:  Rear worklight

Swinging Drawbar: Yes

3 Point Linkage: Category 1

Hydraulic Flow: 14L/min

Hydraulic Lifting: 500kg

Hydraulic Remotes: 1 set (2 x QRC)

Front Tyres: 12 inch Ag/Industrial/Turf options

Rear Tyres: 18 inch Ag/Industrial/Turf options

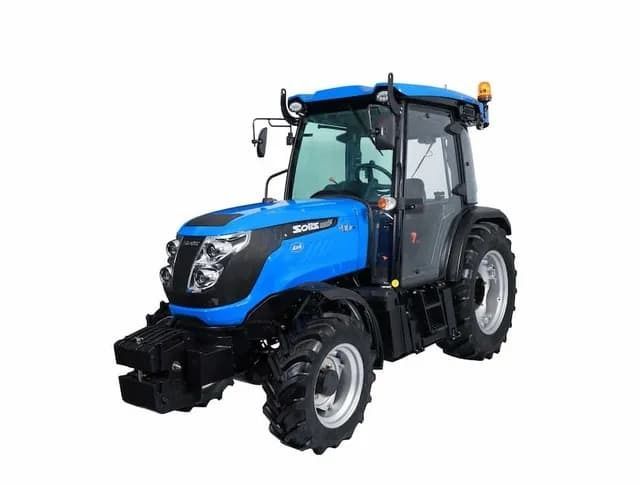

The Solis N90 Tractor is as spacious as it is impressive. This modern tractor delivers high performance, easy operation with power steering and a reliable build. Its impressive turning circle makes it the ideal tractor for mowing, mulching and other farm-related jobs. The compact design combines comfort and performance to create a highly reliable tractor.

Measurements

Ground Clearance: 265mm

Operating Weight: 3260kg

Total Width: 1475mm

Total Length: 4240mm

Turning Radius:

Fuel Tank Capacity: 71L

Speeds

Max Speed: 31.07km/h @ 2000

Min Speed:  0.49km/h @ 2000

PTO (Mid and Rear): 540/540E

Cab & Canopy

ROPS Certified: Yes

Heights up to ROPS: 2700mm

Sunroof Canopy: Optional

Operator Seat:

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: 4 Cylinder turbo charged engine

Power: 67kW/90HP

Spec:

Max Torque: 360Nm @ 1300 RPM

Air Cleaner: Dry air cleaner with clogging sensor

Internal Features

Transmission: Synchromesh 12F + 12R shuttle shift

Clutch: Double clutch

Brakes: Oil immersed

Steering: Power

Differential Lock: Yes, foot operated

Drive: 4WD

External Features

Forward & Rear Work lights:  Yes

Swinging Drawbar: Yes

3 Point Linkage: Cat-II

Hydraulic Flow:

Hydraulic Lifting: 2500kg

Hydraulic Remotes: 2 sets (4 QRC)

Front Tyres: 280/70R18

Rear Tyres: 360/70R28

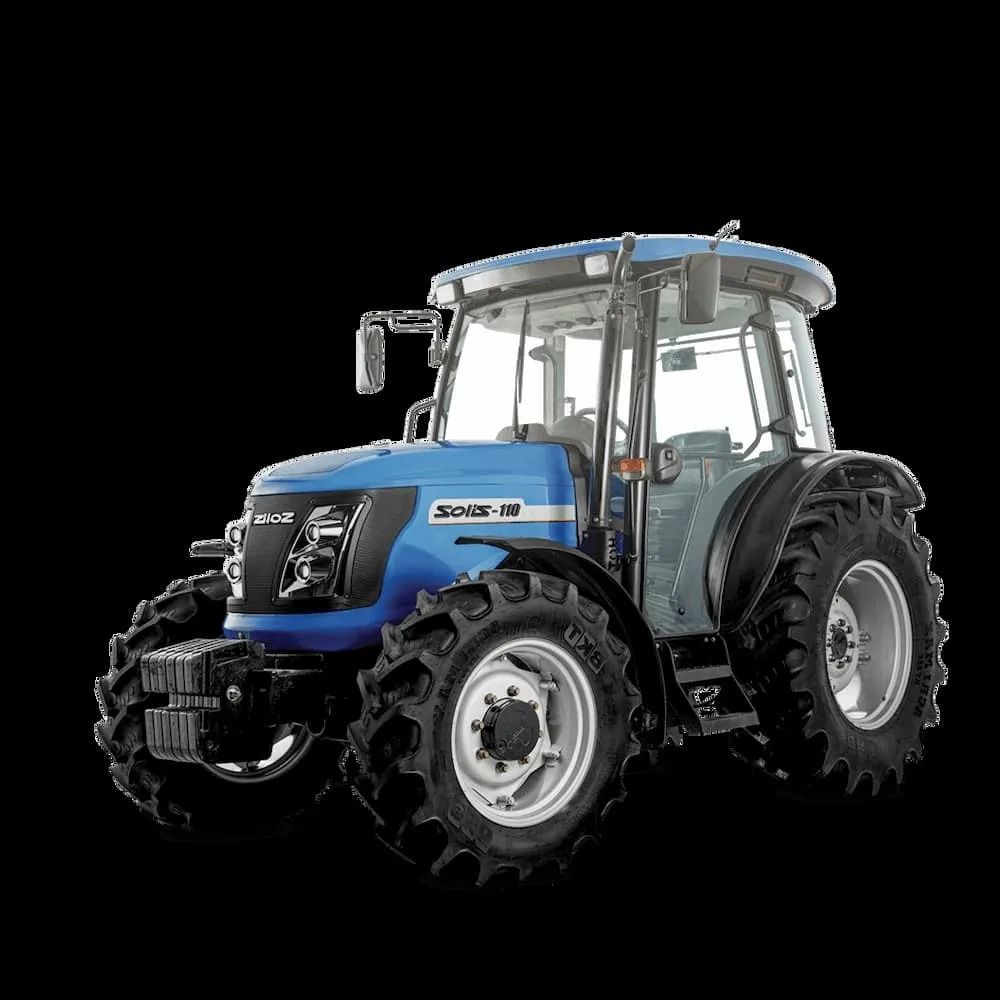

Featuring 110hp, the Solis S110 Tractor is a high performing machine, perfect for any farmer. Built with quality and durability in mind, this tractor uses more steel and less plastic, making it tougher than its competitors. It includes full synchromesh transmission with creeper range, forward/reverse shuttle and the choice of certified ROP’s with sunshade canopy or certified Cab with heater and air conditioning.

Measurements

Ground Clearance: 488mm

Operating Weight: ROPs 4610kg/Cab 5010kg dry (no loader or weights)

Total Width: 2240mm

Total Length: 4380mm

Turning Radius: 6.1 metres

Fuel Tank Capacity: 117L

Speeds

Max Speed: 40km/h

Min Speed:  0.5km/h

PTO (Mid and Rear): 540/540E RPM - Wet clutch engagement

Cab & Canopy

ROPS Certified:  Yes

Heights up to ROPS: ROPs 2820mm/Cab 2870mm

Sunroof Canopy: Yes, cab option available

Operator Seat: Suspension seat with seatbelt

Switches

Neutral Safety Switch: Yes

PTO Safety Switch: Yes

Clutch Safety Start Switch: Yes

Engine

Type: Solis 4 cylinder

Power: 82kW/110HP

Spec: No engine ECU, Tier 3

Max Torque: 64Nm @ 1200 RPM

Air Cleaner: 64Nm @ 1200 RPM

Internal Features

Transmission: Synchromesh F/R Shuttle, 3 ranges + creeper, 4 speeds (24F/24R)

Clutch: Dry mechanical actuation

Brakes: Wet multi plate

Steering: Hydrostatic power steering

Differential Lock: Yes, electrical switch operated

Drive: Selectable 2WD/4WD

External Features

Forward & Rear Work lights: Yes

Swinging Drawbar: Yes

3 Point Linkage: Category 3

Hydraulic Flow: 80L/min

Hydraulic Lifting: 4500kg

Hydraulic Remotes: 3 sets (6 x QRC)

Front Tyres: 12.4-28 Ag/Industrial/Turf options

Rear Tyres: 16.9-38 Ag/Industrial/Turf options
